Seat Belt Systems

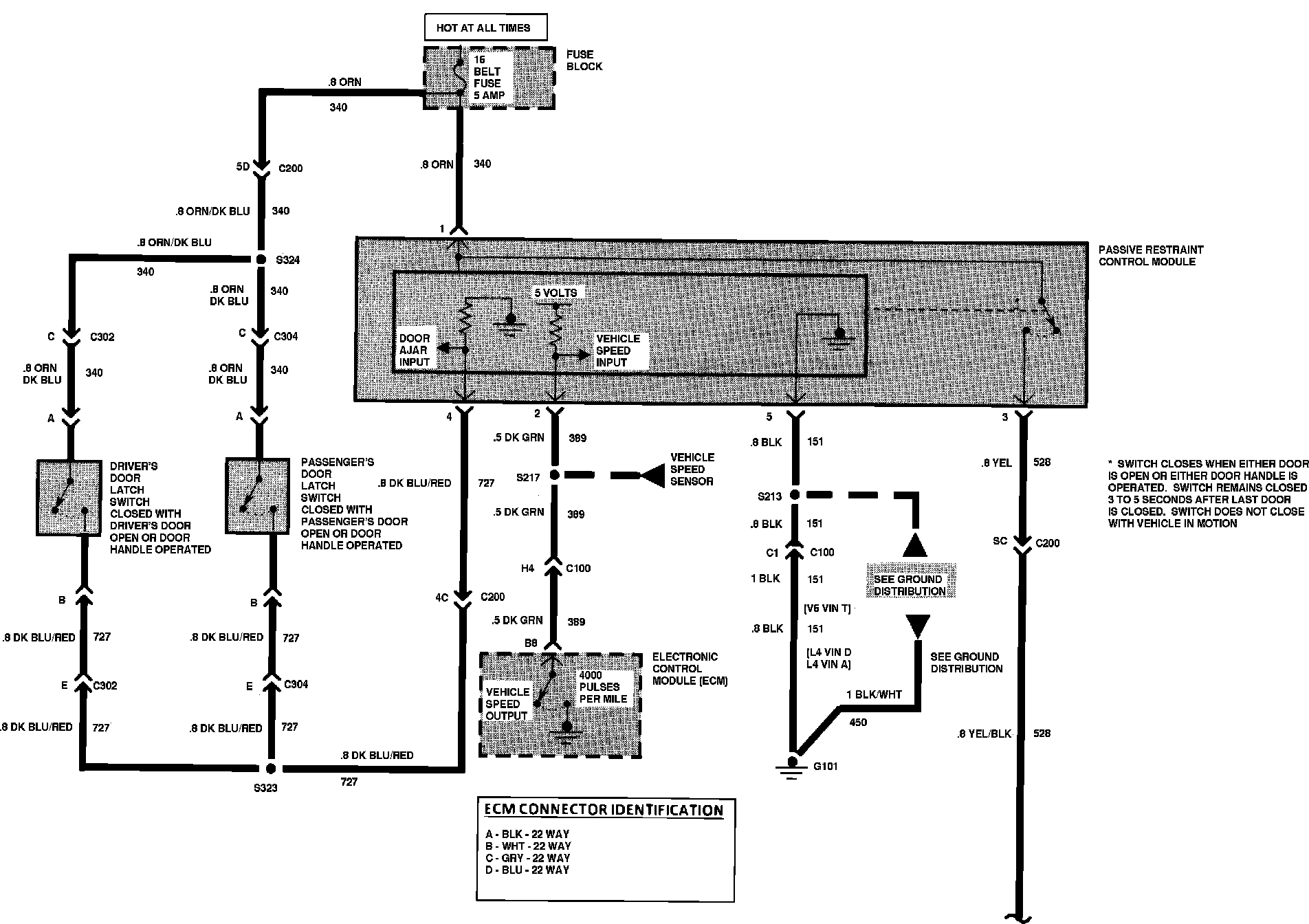

Fig. 13 Automatic Safety Belt Schematic (Part 1 Of 2):

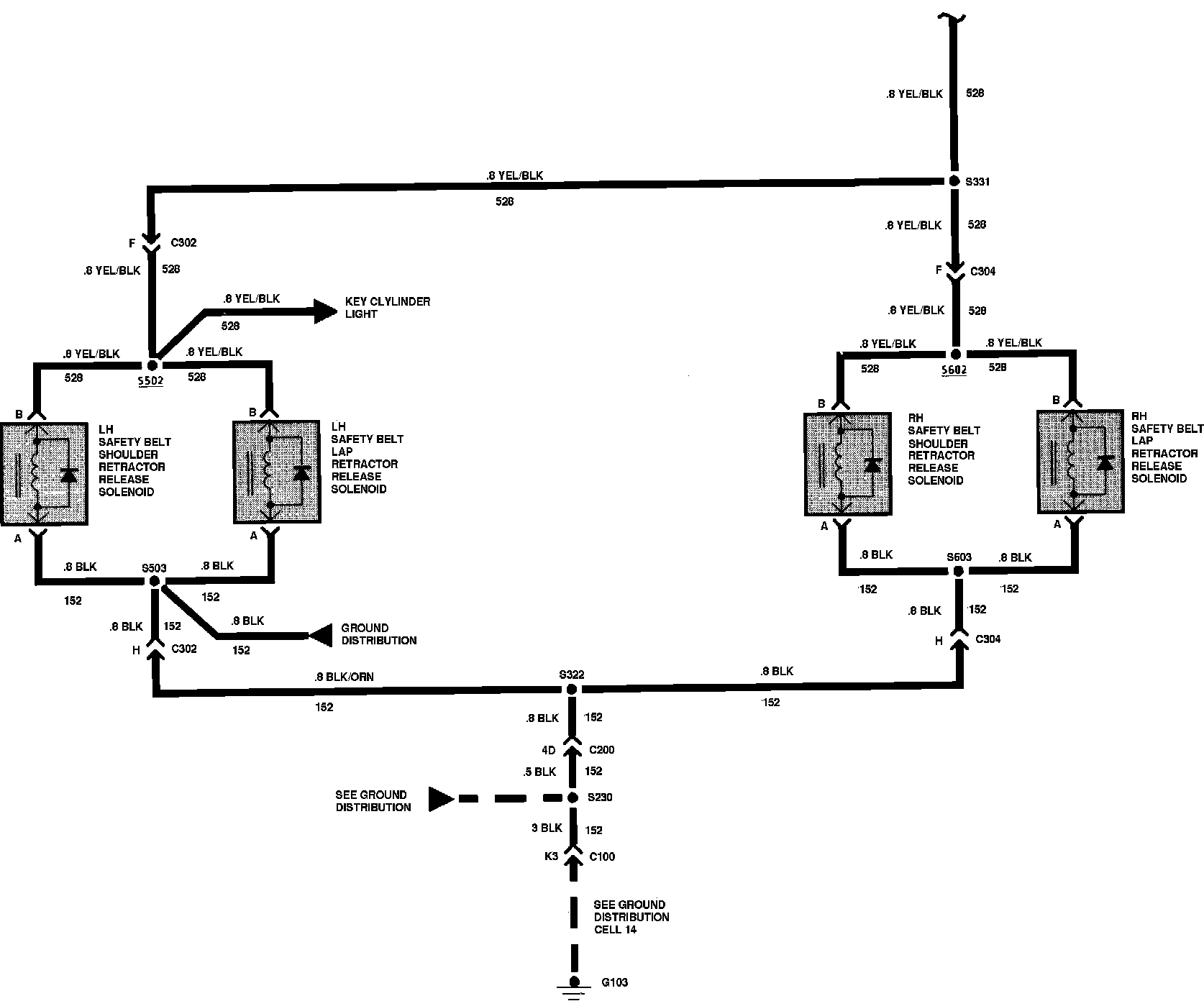

Fig. 13 Automatic Safety Belt Schematic (Part 2 Of 2):



Automatic Safety Belts:



Automatic Safety Belts:
