Home
>>
Oldsmobile
>>
1990
>>
Cutlass L4-138 2.3L VIN D FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Courtesy Lamp
Courtesy Lamp

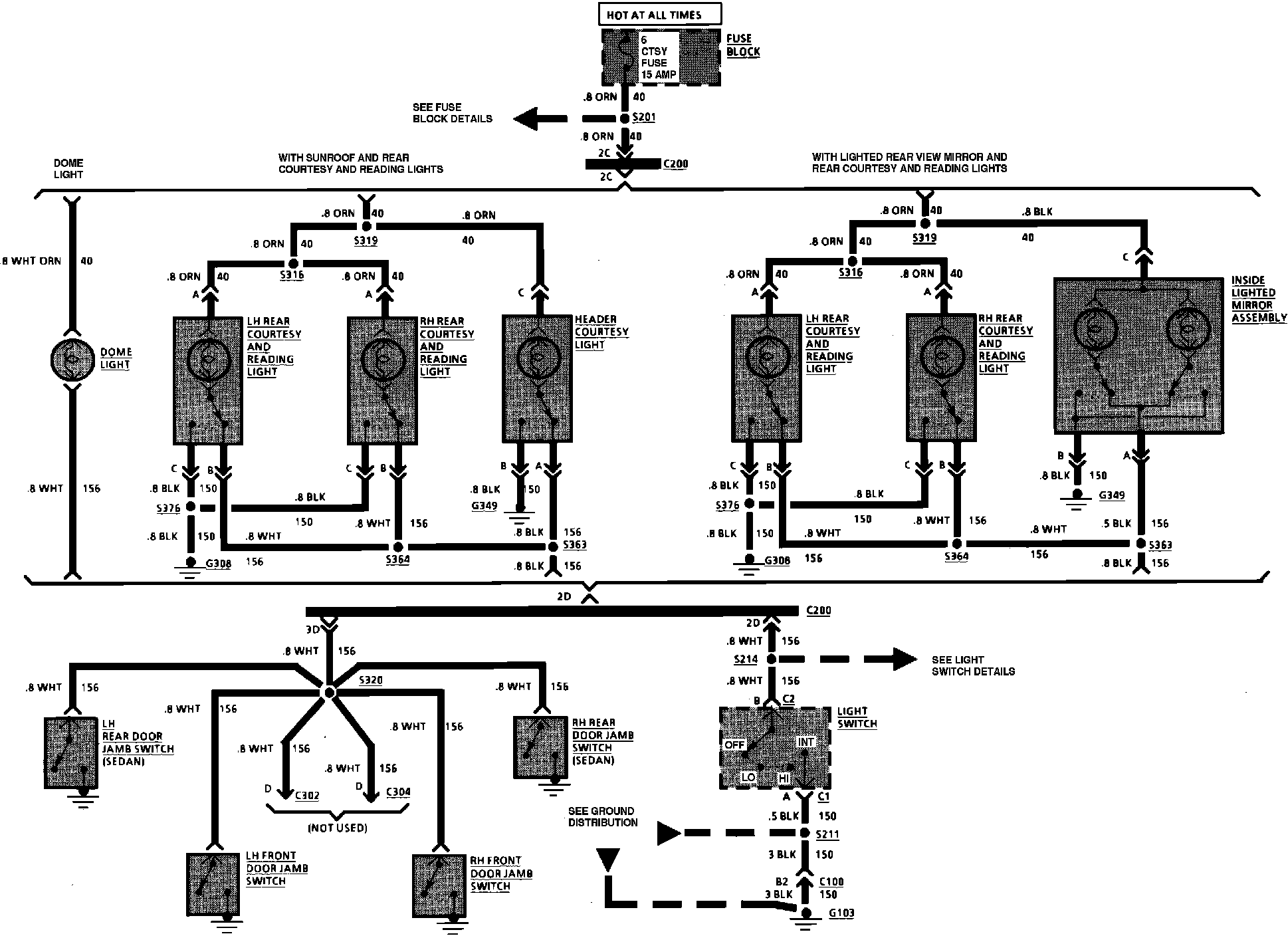

Interior Lights. Dome, Lighting Mirror, Header & Rear Reading Courtesy:
