Antilock Brakes / Traction Control Systems

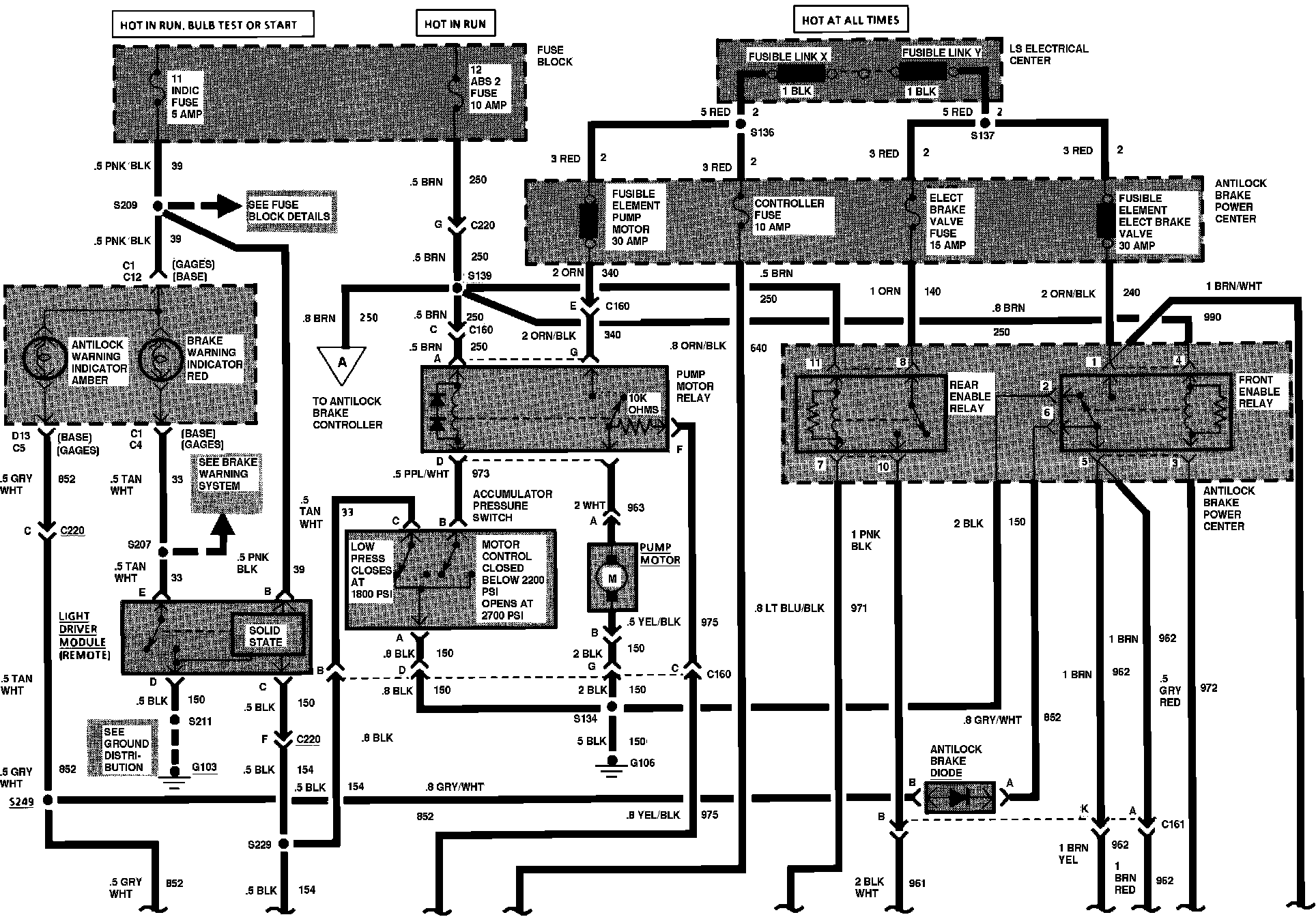

Anti-Lock Brake System Part 1 Of 2:

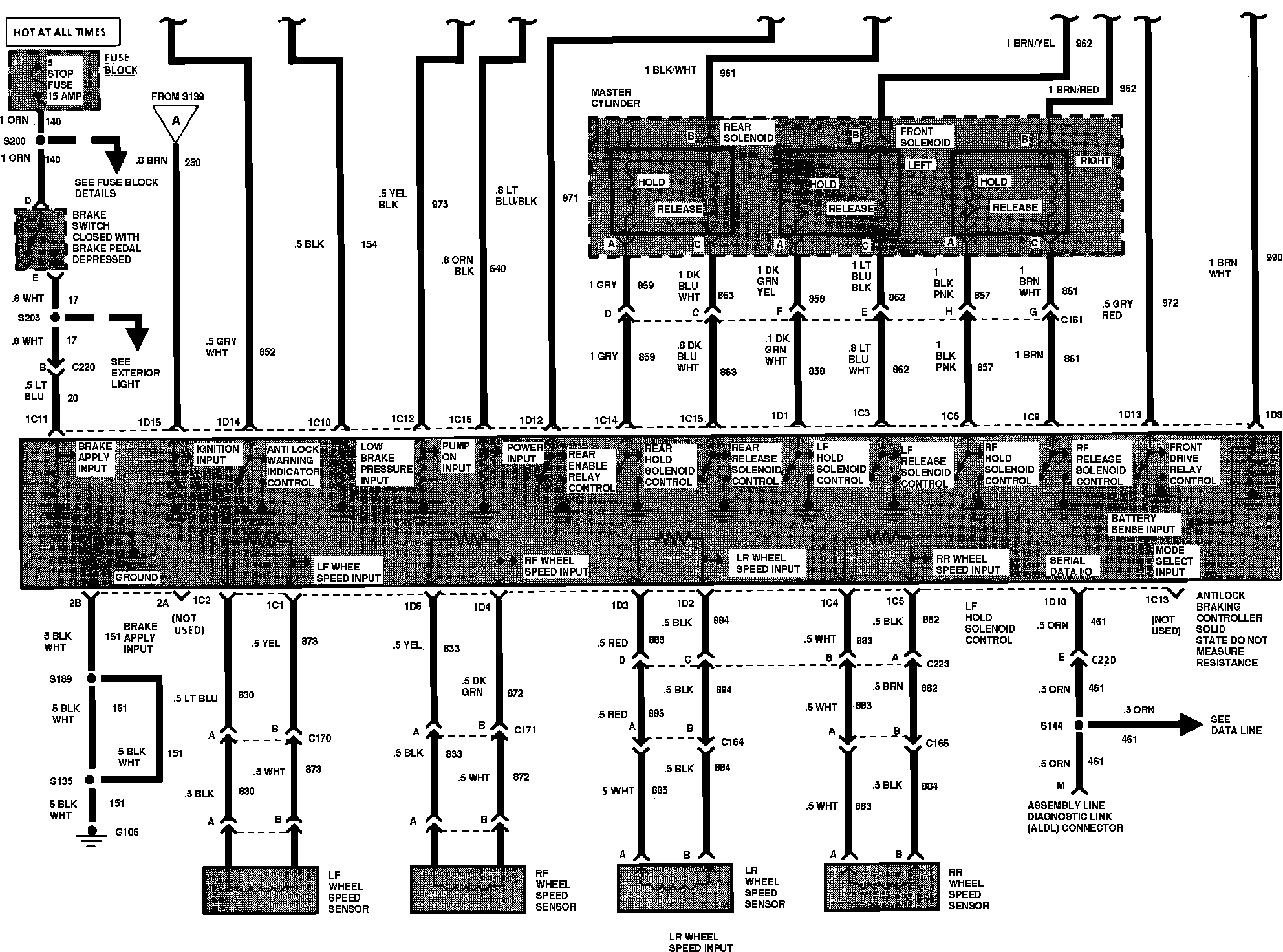

Anti-Lock Brake System Part 2 Of 2:

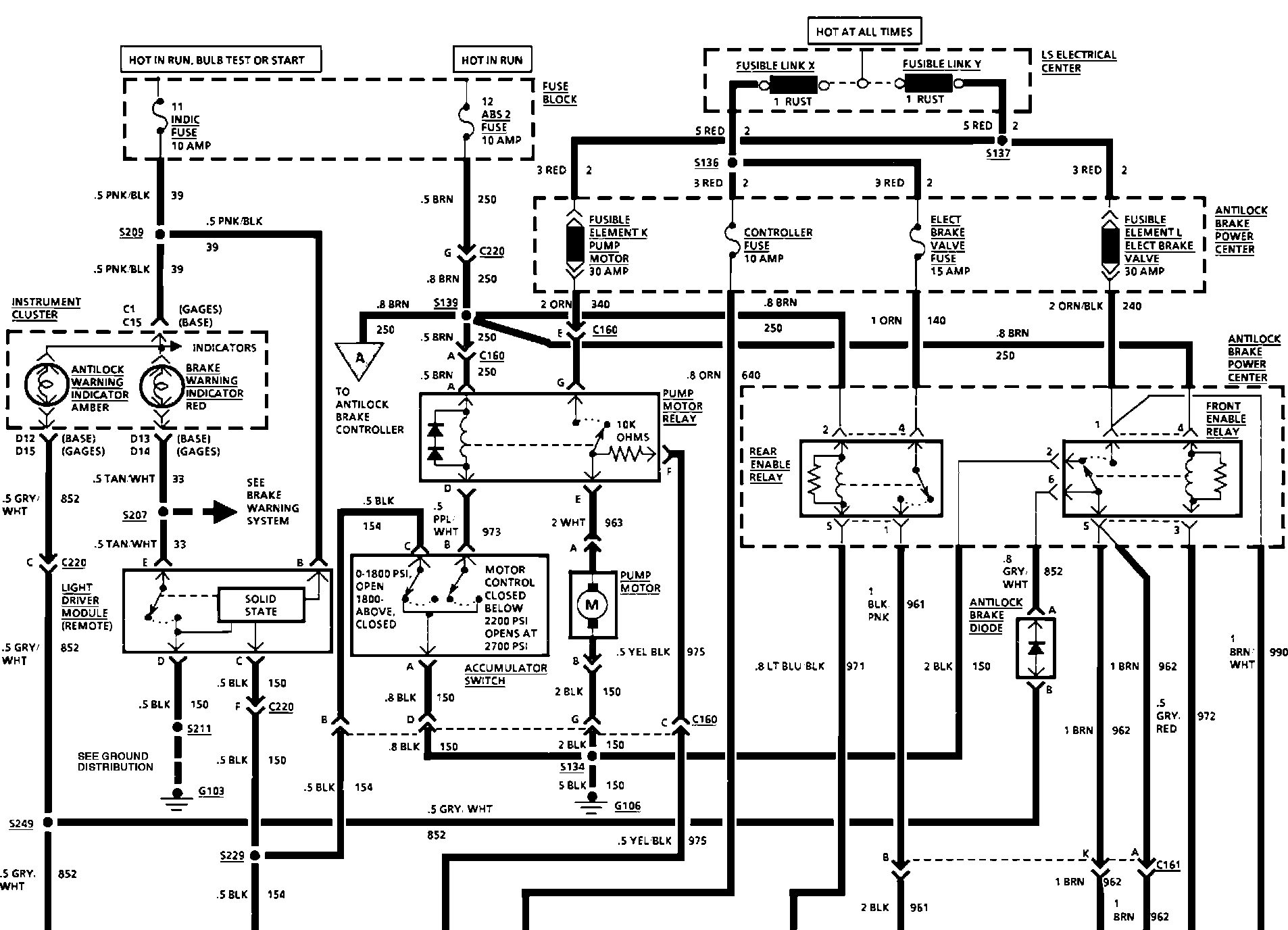

Anti-lock Brake Wiring System:



Anti-Lock Brake Wiring System:
