Power Seats - Revised Schematic

9219oldsmobile04

NUMBER:
90-T-101

CORP.REF.NO:
038120

DATE:
May 1990

SECTION:
8A


SUBJECT
SERVICE MANUAL UPDATE - SECTION 8A-140

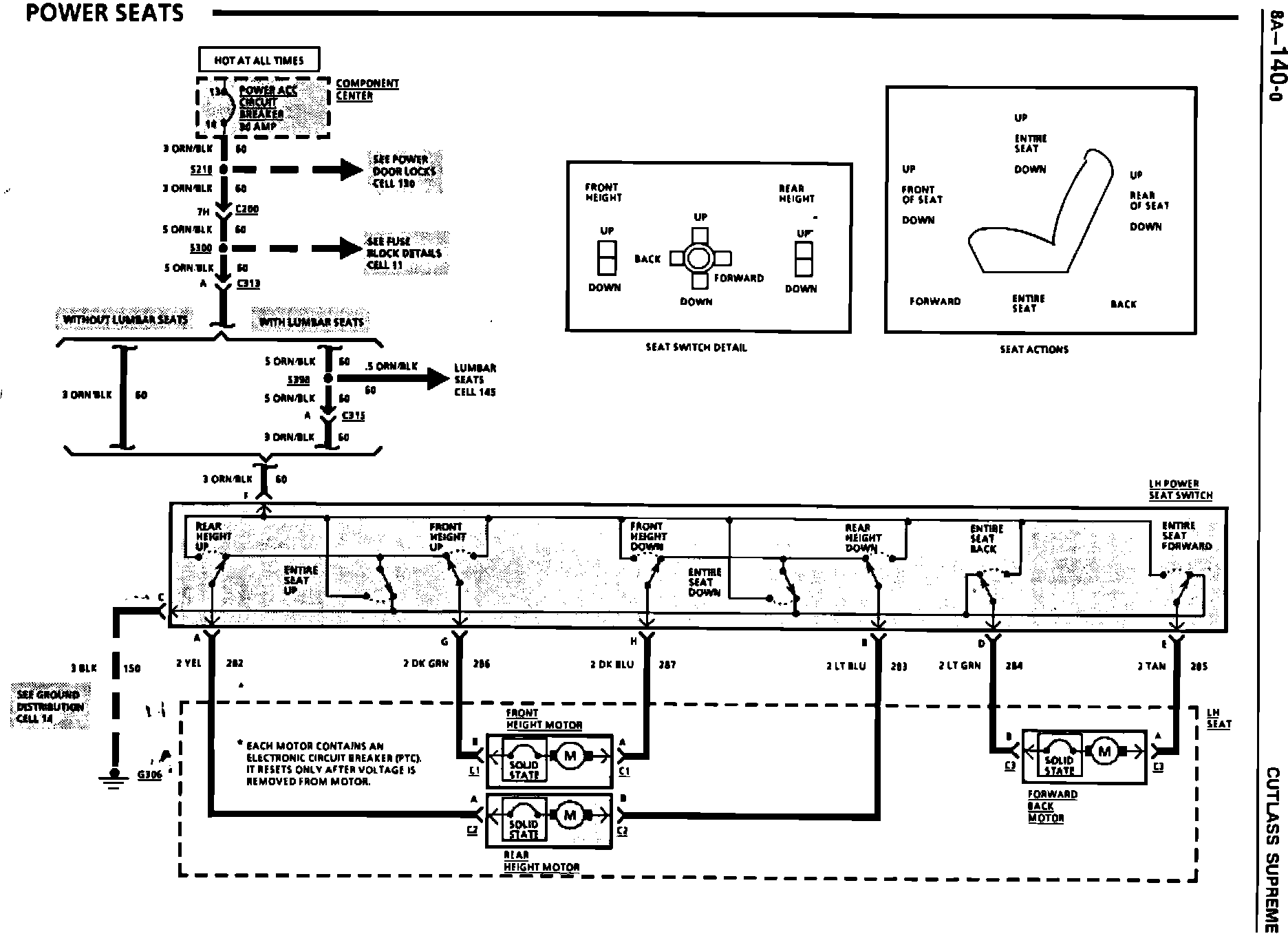

POWER SEATS (NEW SCHEMATIC)


MODELS/YEARS
1990 CUTLASS SUPREME





Please photo copy and insert the new Power Seats schematic over the existing schematic on page BA-140-0 for the 1990 Oldsmobile Cutlass Supreme Service Manual.
