Underbody - Revised Dimensions Chart

9219oldsmobile03

NUMBER: 90-T-75

CORP.REF.NO: 031009

DATE: March 1990

SECTION: 10-3


SUBJECT:
SERVICE MANUAL UPDATE - SECTION 10-3 UNDERBODY DIMENSIONS (REVISED DIMENSION CHARTS)

MODELS/YEARS:
1988 -1990 CUTLASS SUPREME MODELS











Service Manuals Affected:


1989 - 90 Cutlass Supreme Section 10-3 pages 2, 3, 4
1988 Cutlass Supreme Section 3W pages 1, 3, 4

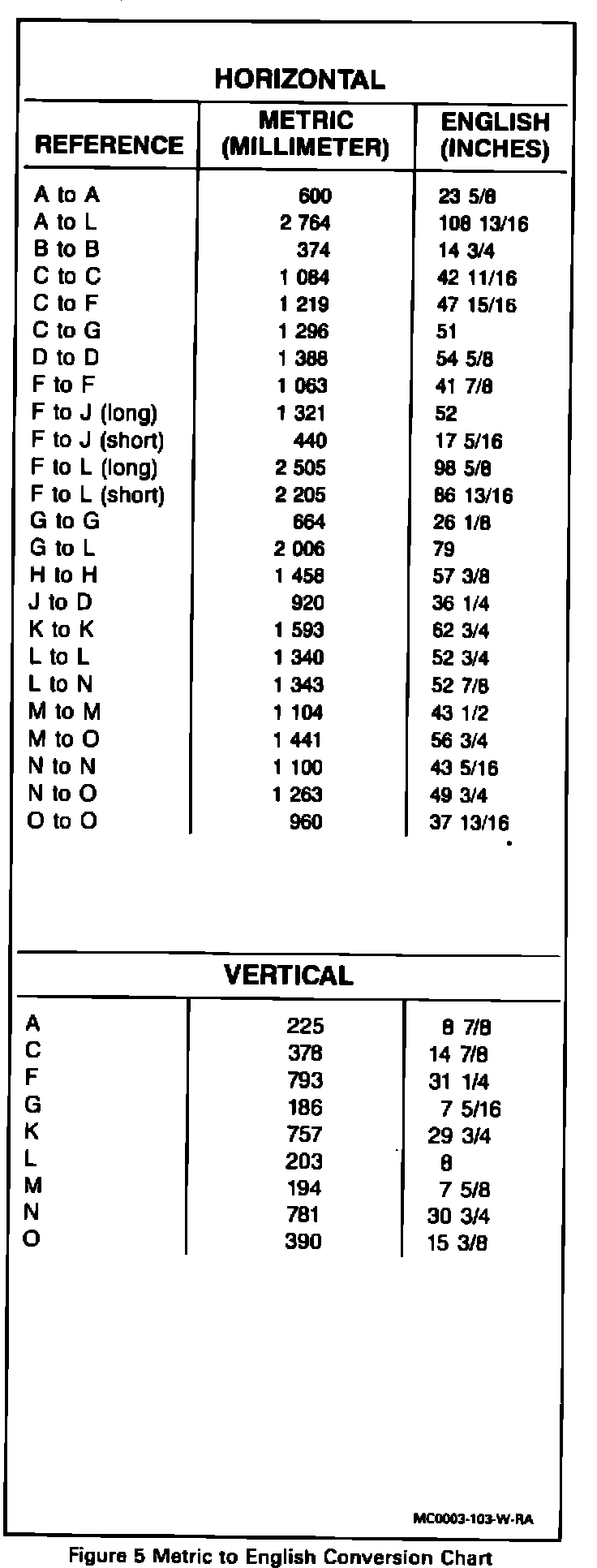

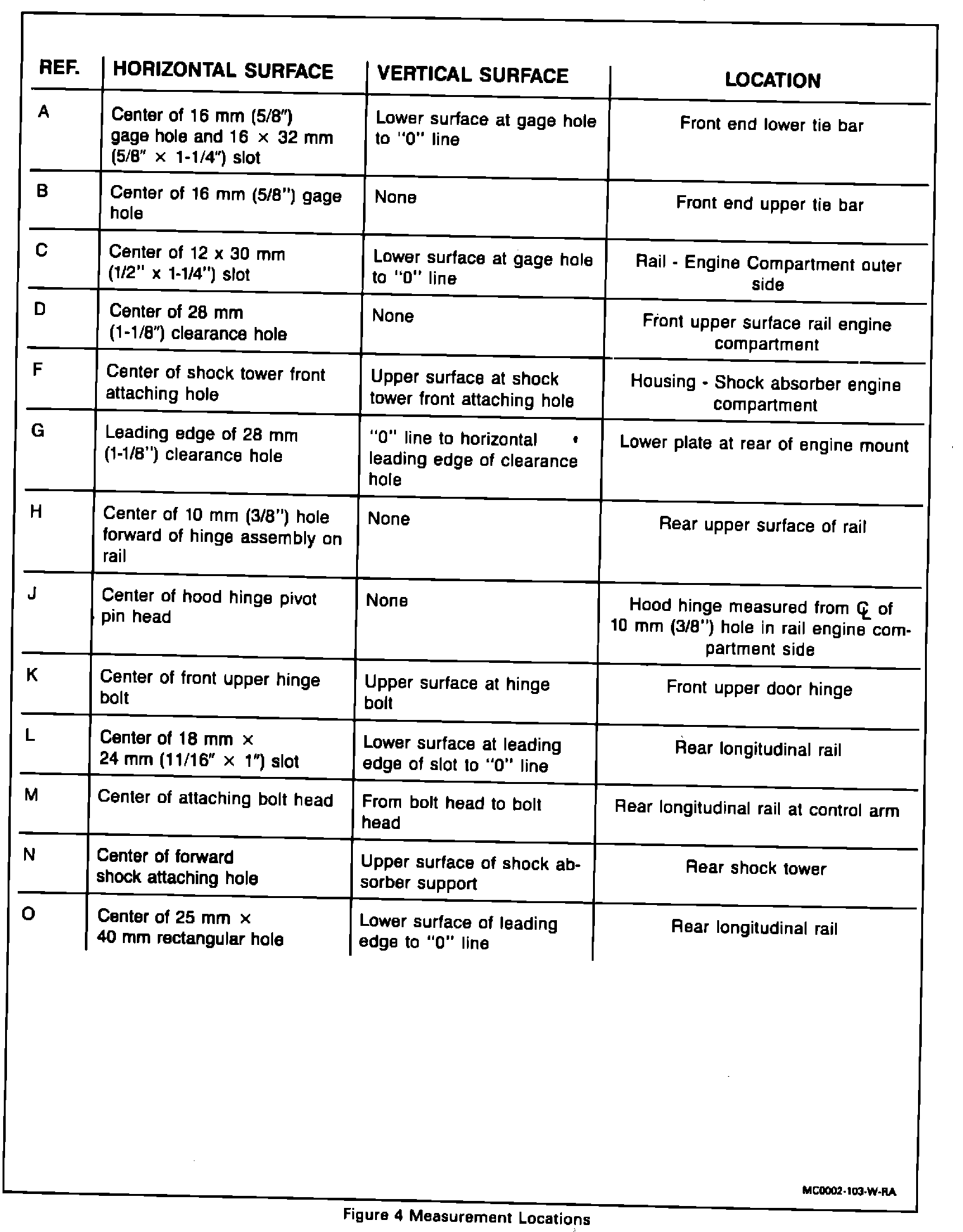

The Underbody dimension Figures 1, 4 and 5 have been revised. The following Figures should be referred to when the Underbody dimensions are being measured.
