Home >> Oldsmobile >> 1990 >> Cutlass Ciera Cruiser V6-3300 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Part 2 of 2 >> Less Console

Less Console

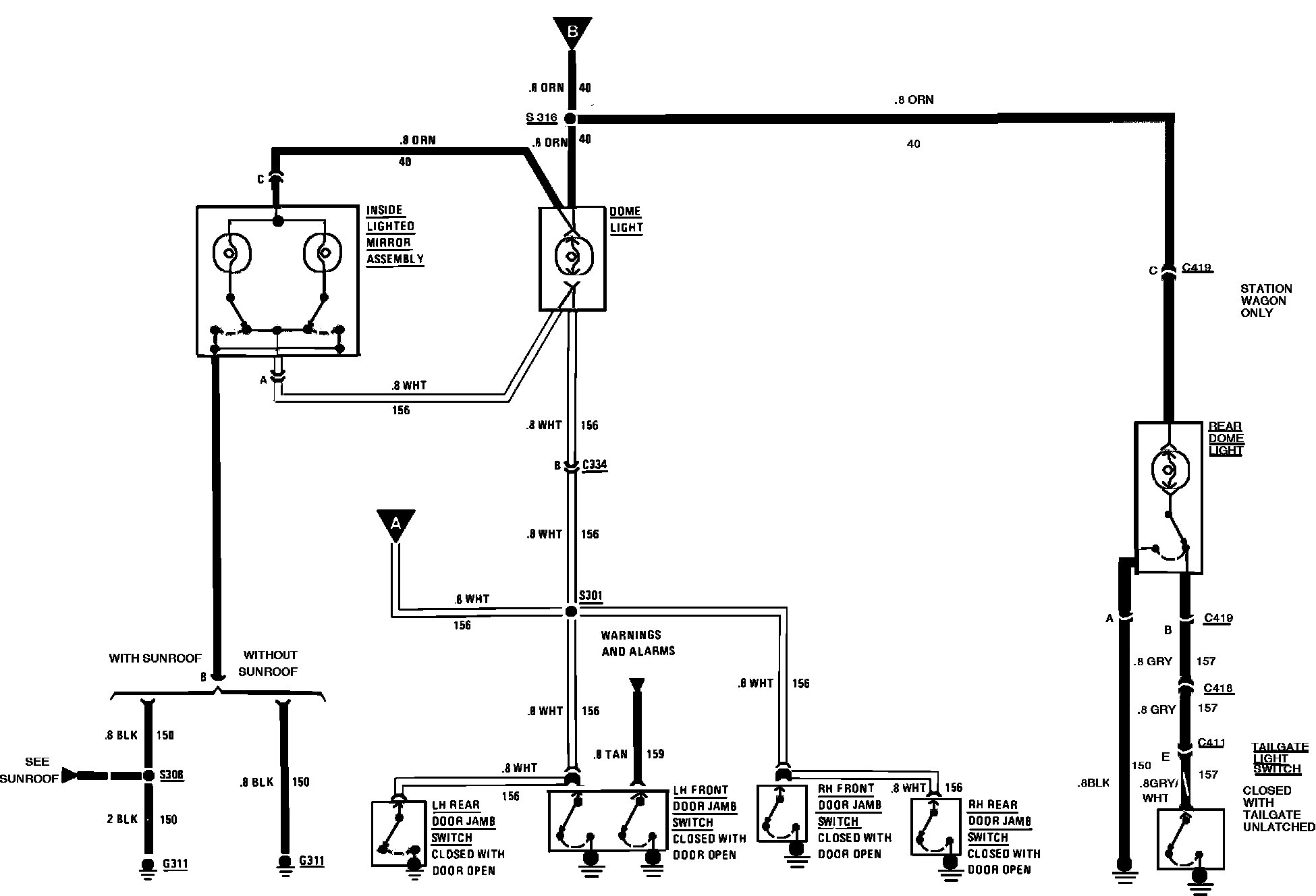

Interior Lights. Less Console:
