D: ELC Height Sensor Test
D: ELC Height Sensor Test

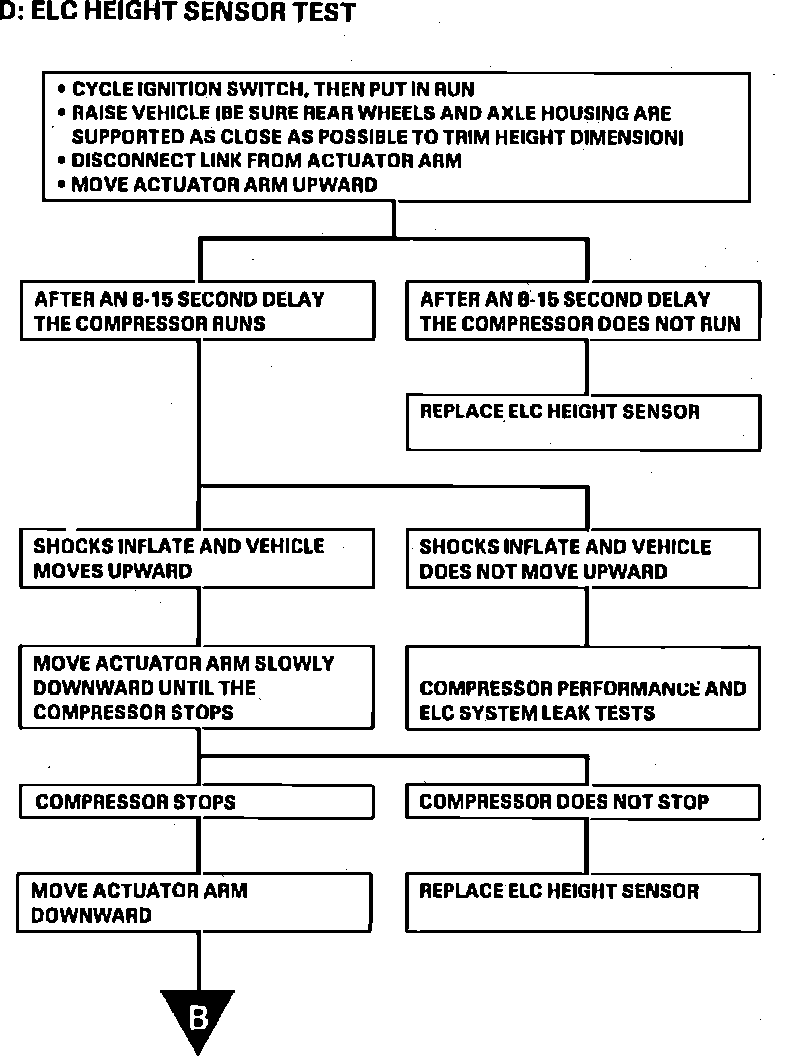

Fig. 15 ELC System Diagnostic Chart (Part 4 Of 6):

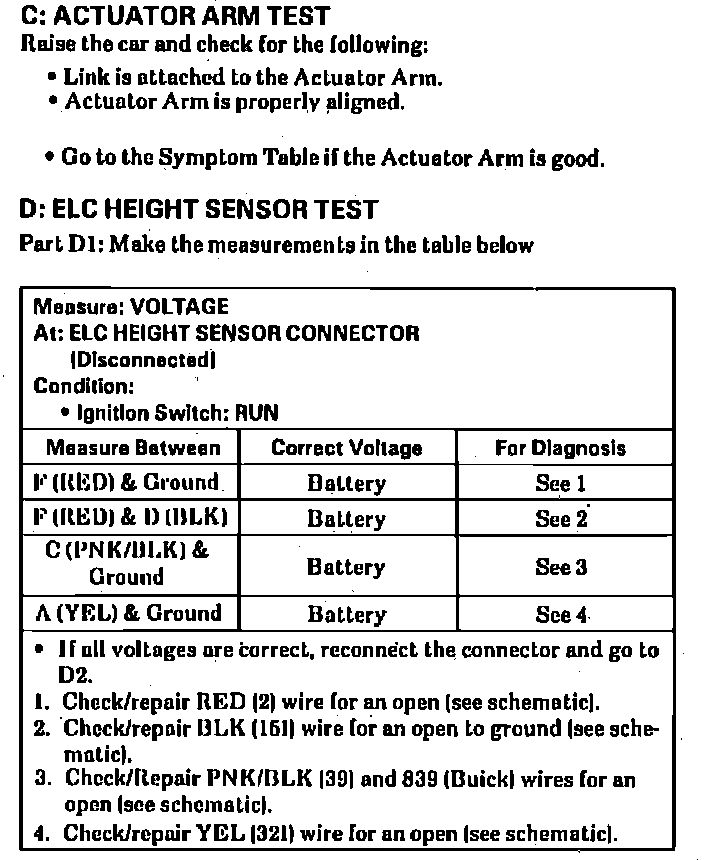

Fig. 15 ELC System Diagnostic Chart (Part 5 Of 6):
