Oldsmobile
>>
1990
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
Vacuum and Vapor Hose Diagrams

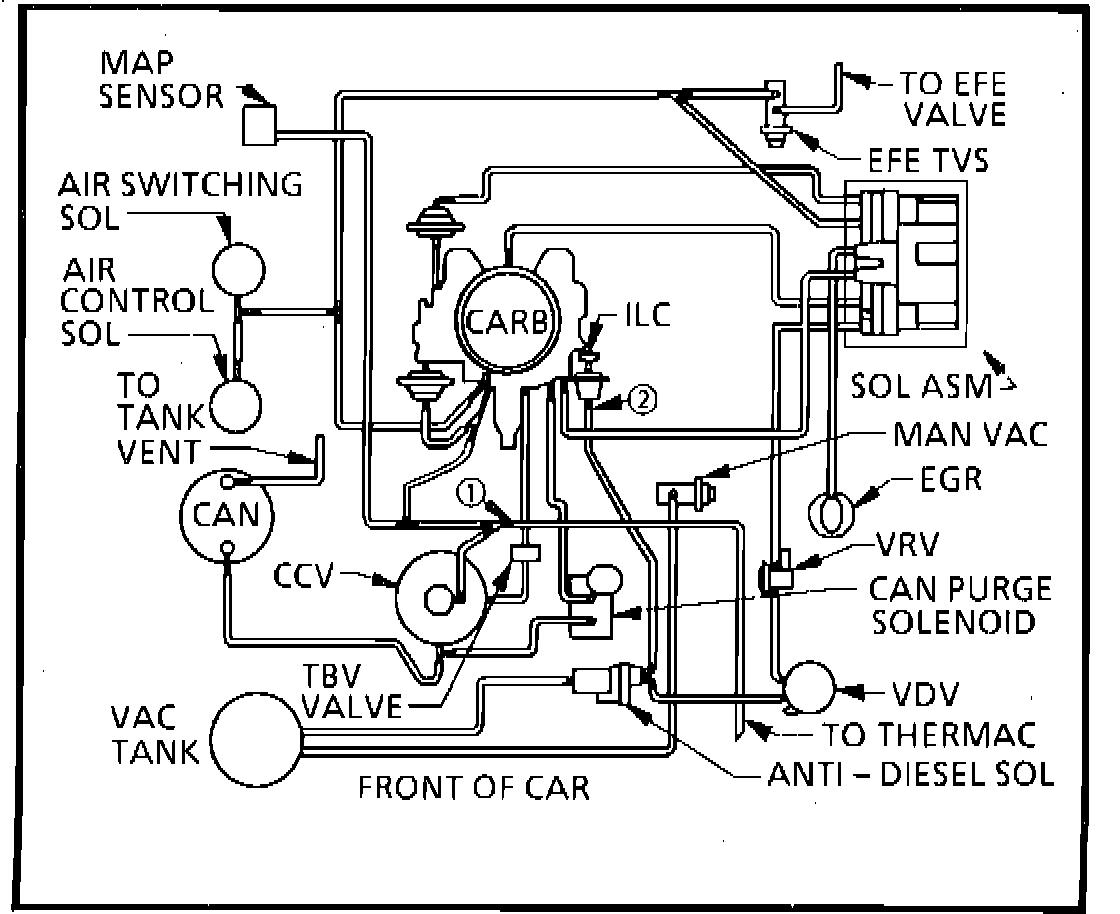

Vacuum & Vapor Hose Routing:
