Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G108 & G109
G108 & G109

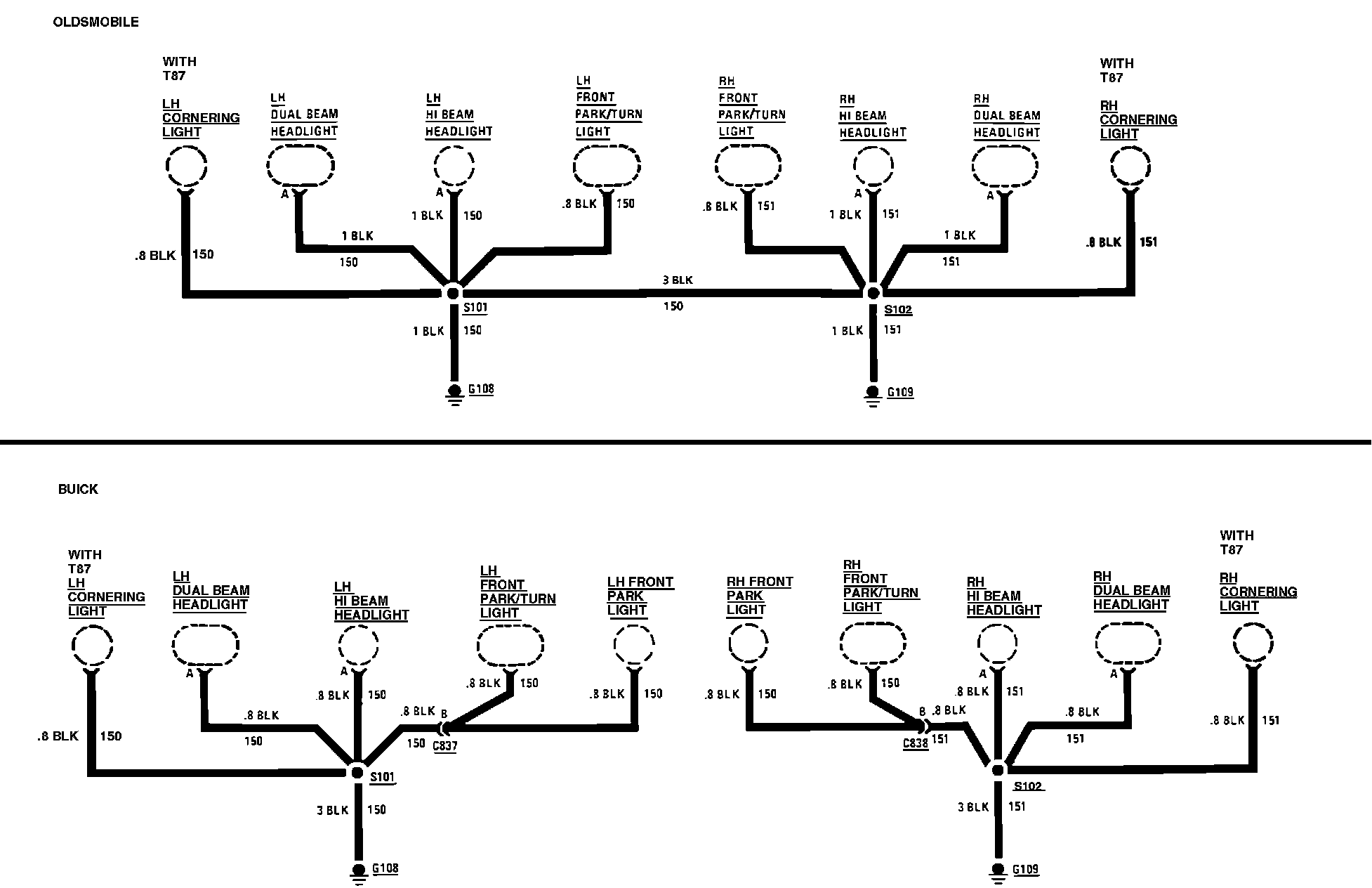

Ground Distribution. G108 & G109:
