Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1990
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
>>
Window Circuit Breaker
Window Circuit Breaker

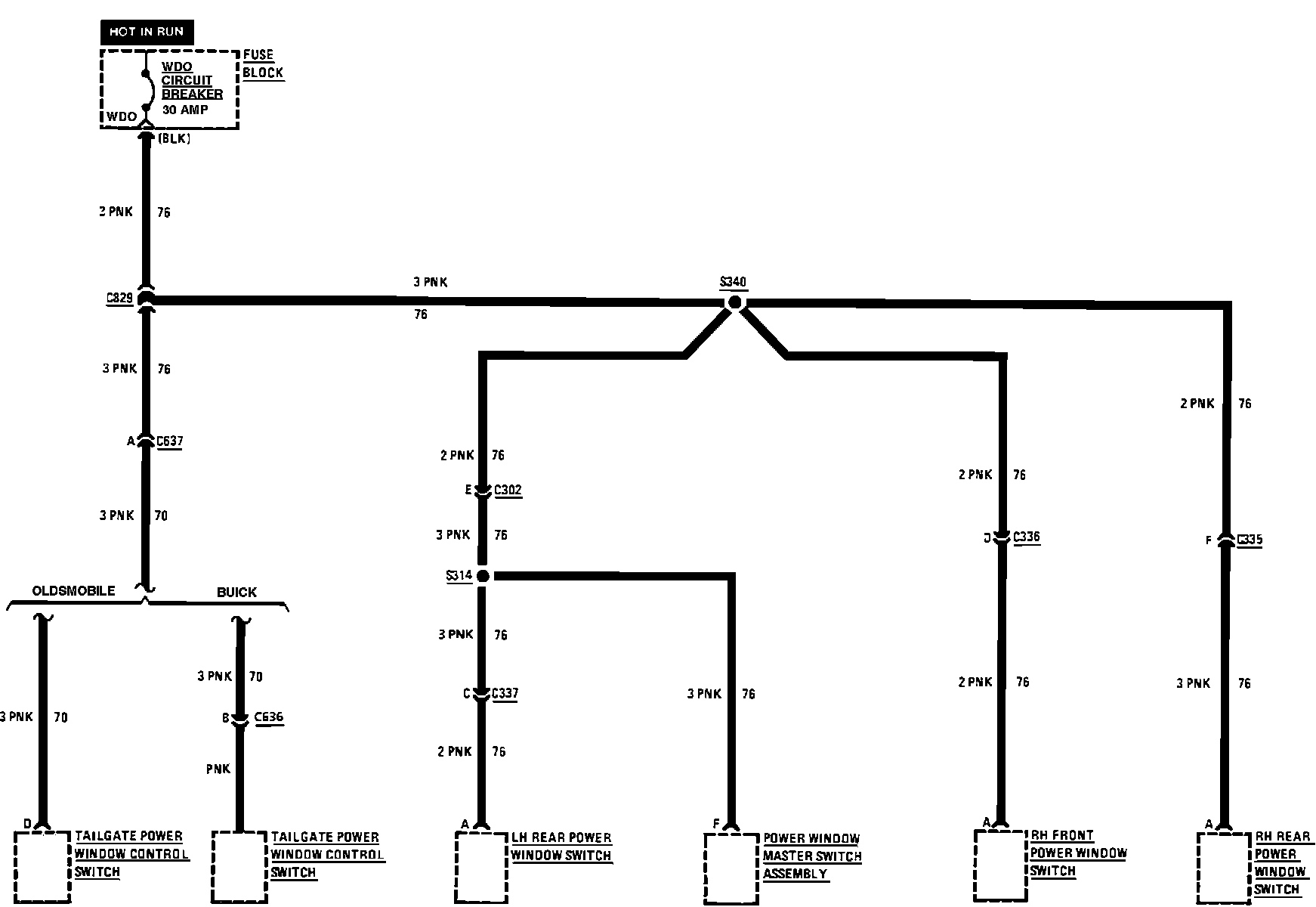

Fuse Block Details. Window Circuit Breaker:
