Home
>>
Oldsmobile
>>
1990
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Maintenance
>>
Fuses and Circuit Breakers
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Dome
Dome

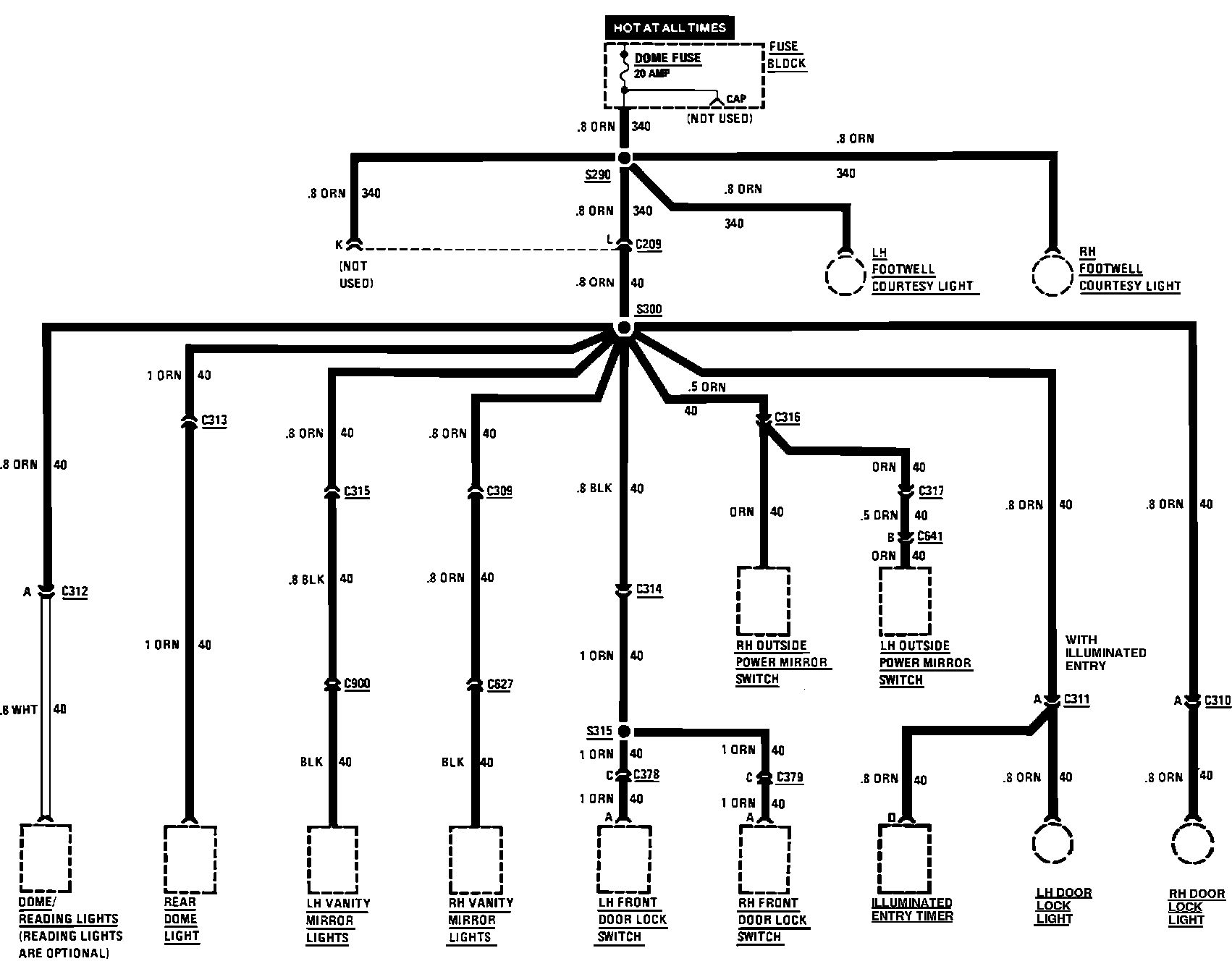

Fuse Block Details. Dome:
