Home
>>
Oldsmobile
>>
1990
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

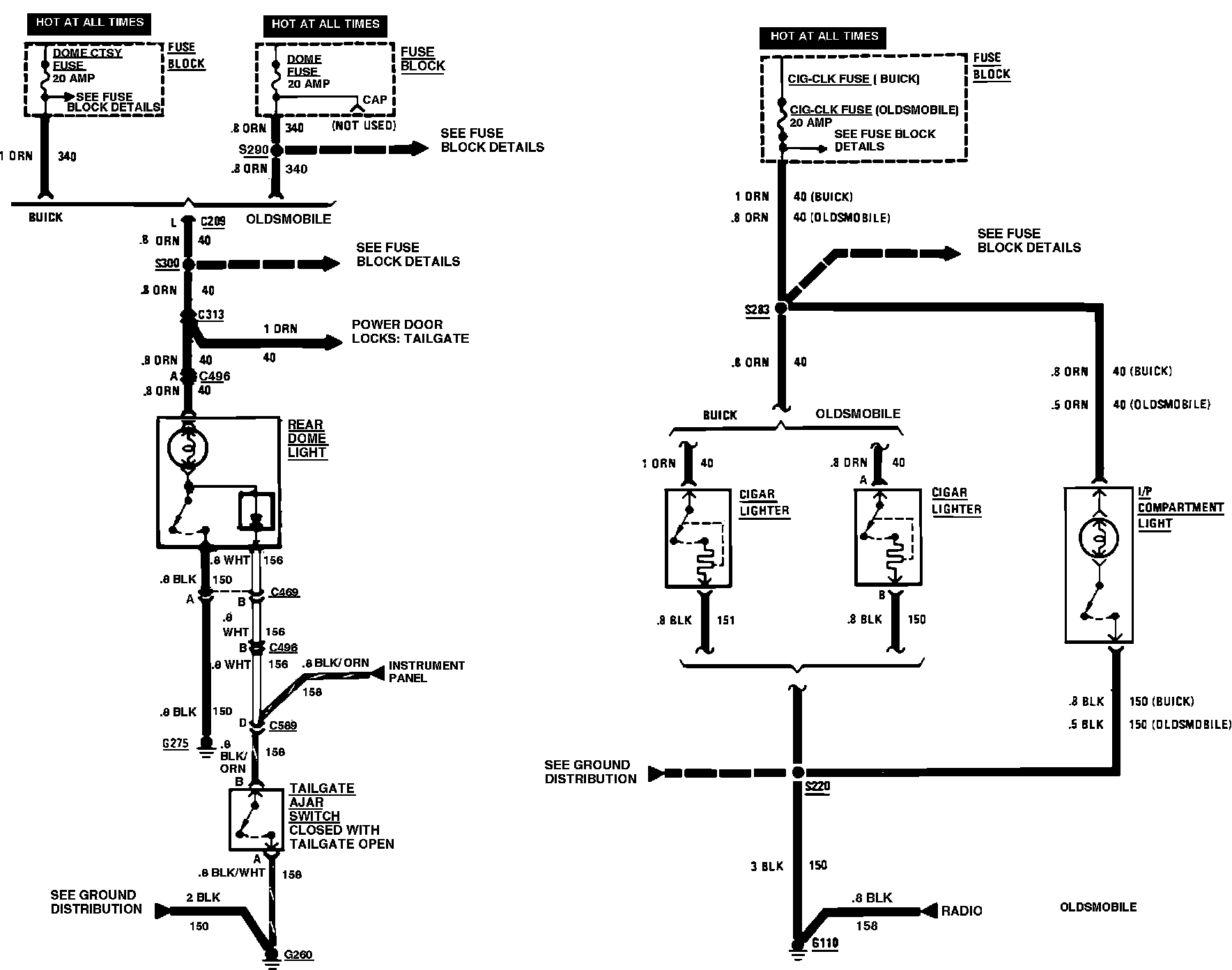

Interior Lamps. Cigar Lighter, I/P Compartment Lamps & Rear Dome Lamps:
