Home
>>
Oldsmobile
>>
1990
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>
System Diagram
>>
Cornering Lamps

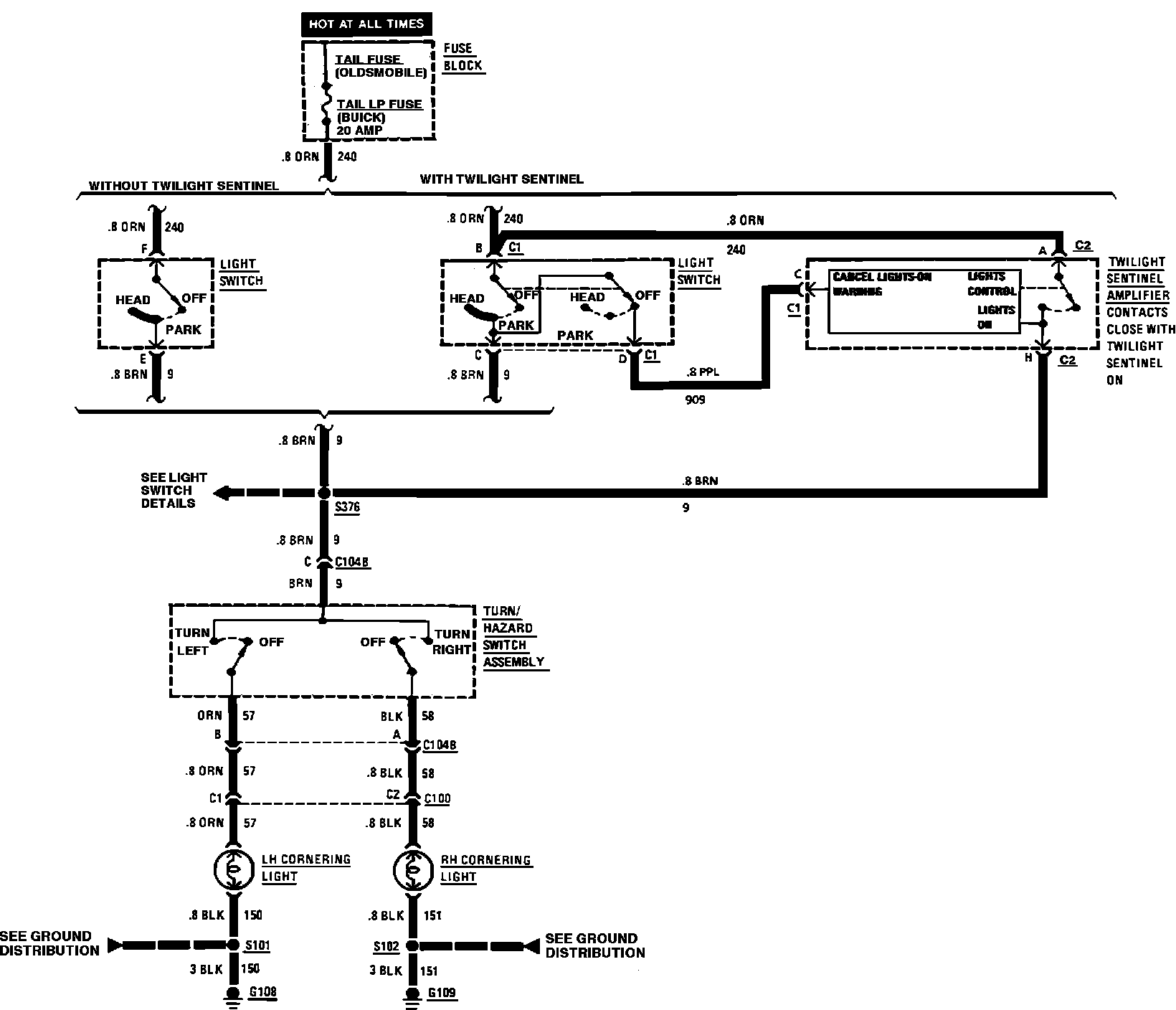

Cornering Lamps
Cornering Lamps:
