Charging, Cruise & Stop/Hazard
Charging, Cruise & Stop/Hazard

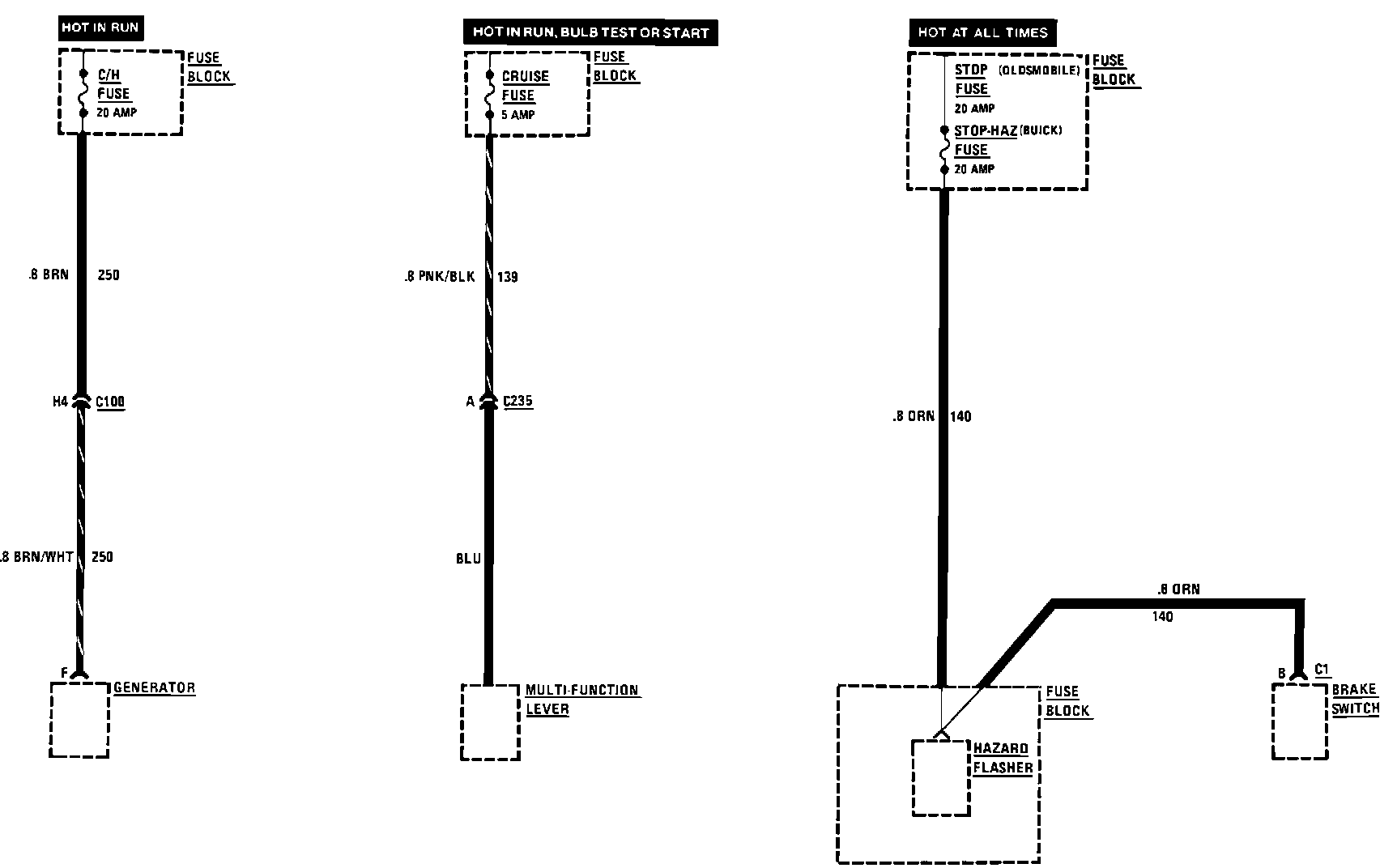

Fuse Block Details (Charging, Cruise & Stop/Hazard):
