Home >> Oldsmobile >> 1990 >> Custom Cruiser V8-307 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> RH Seat

RH Seat

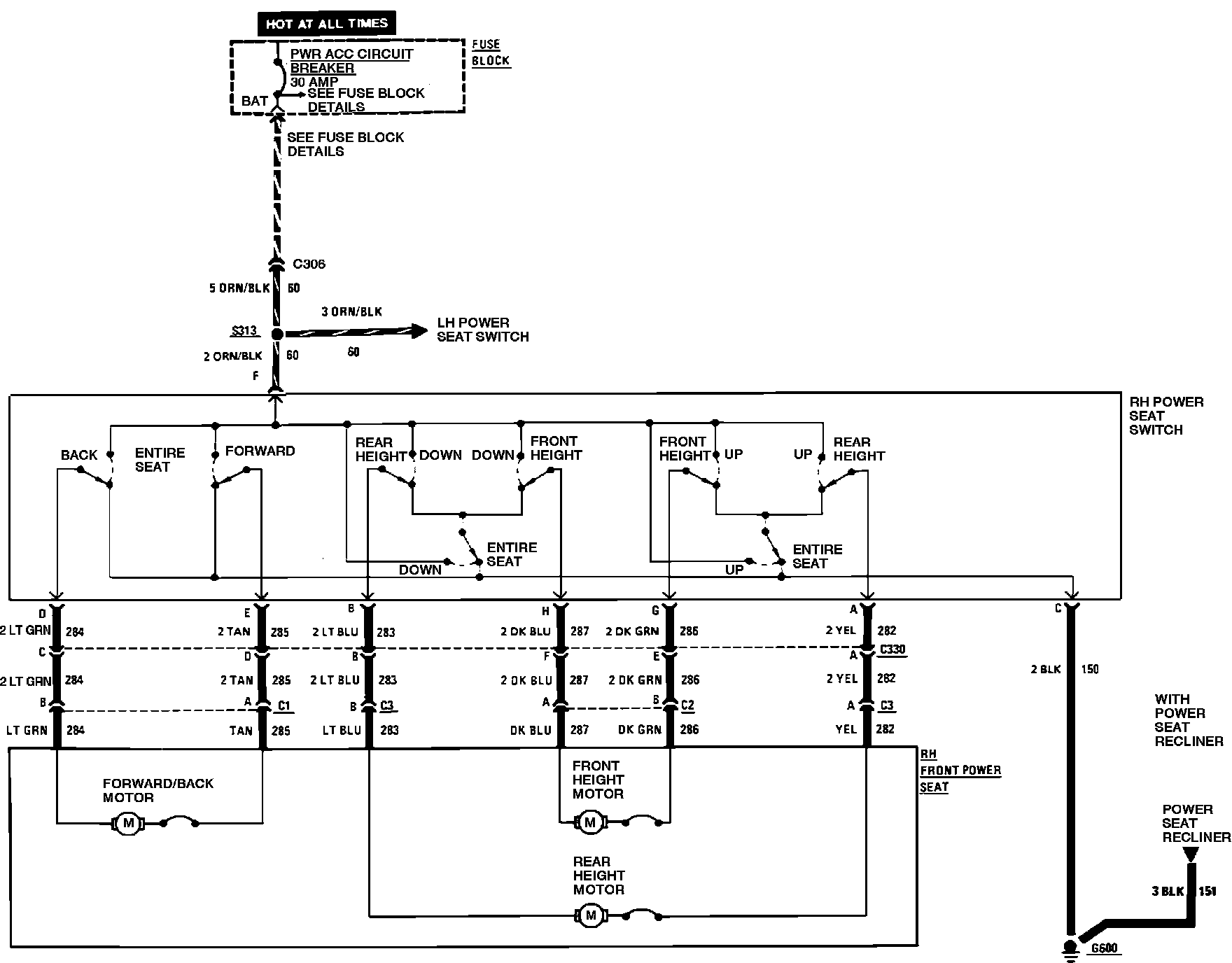

Power Seats. RH Side:
