Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1990
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Indicators
Indicators

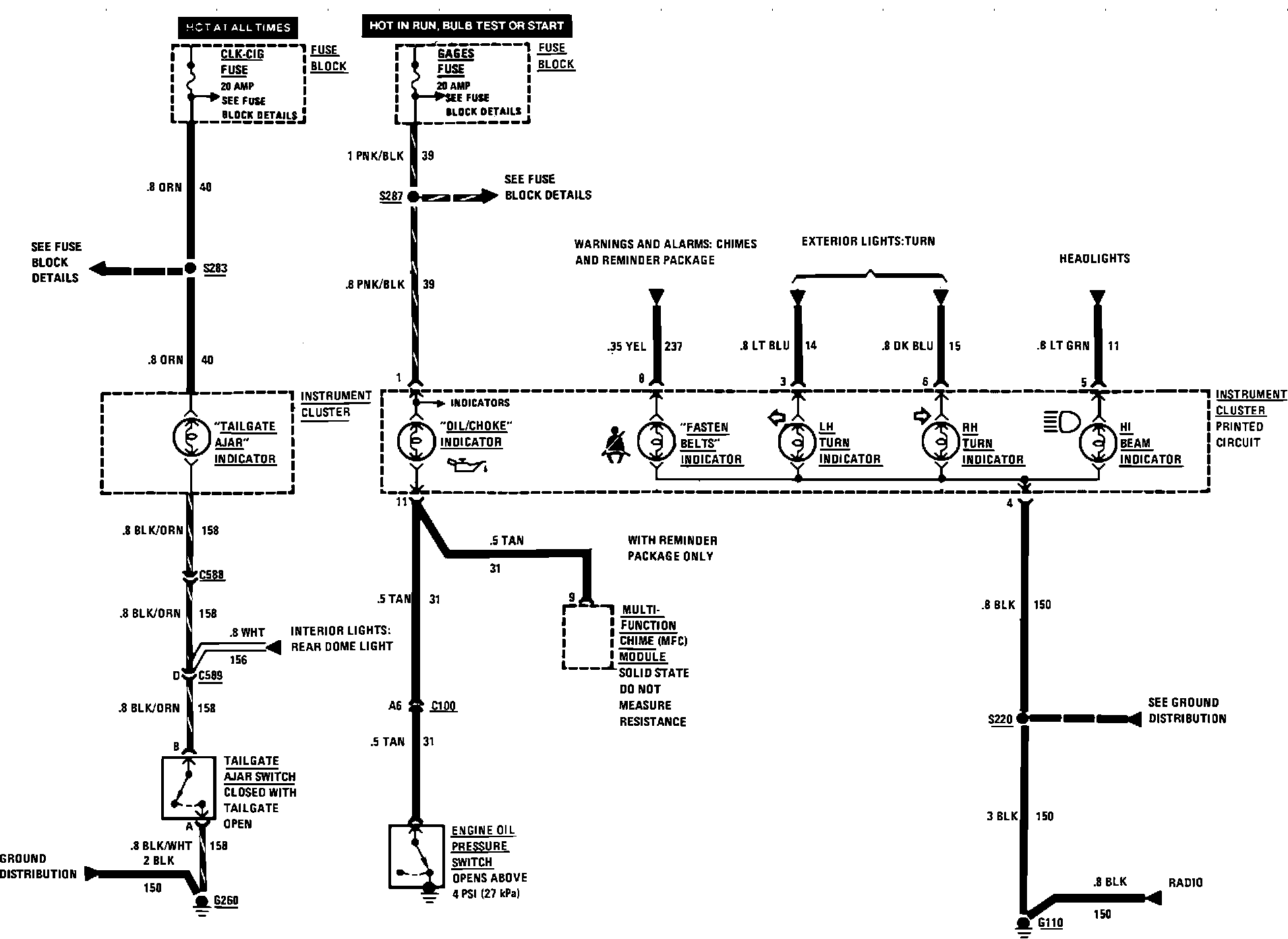

Instrument Panel Indicators:

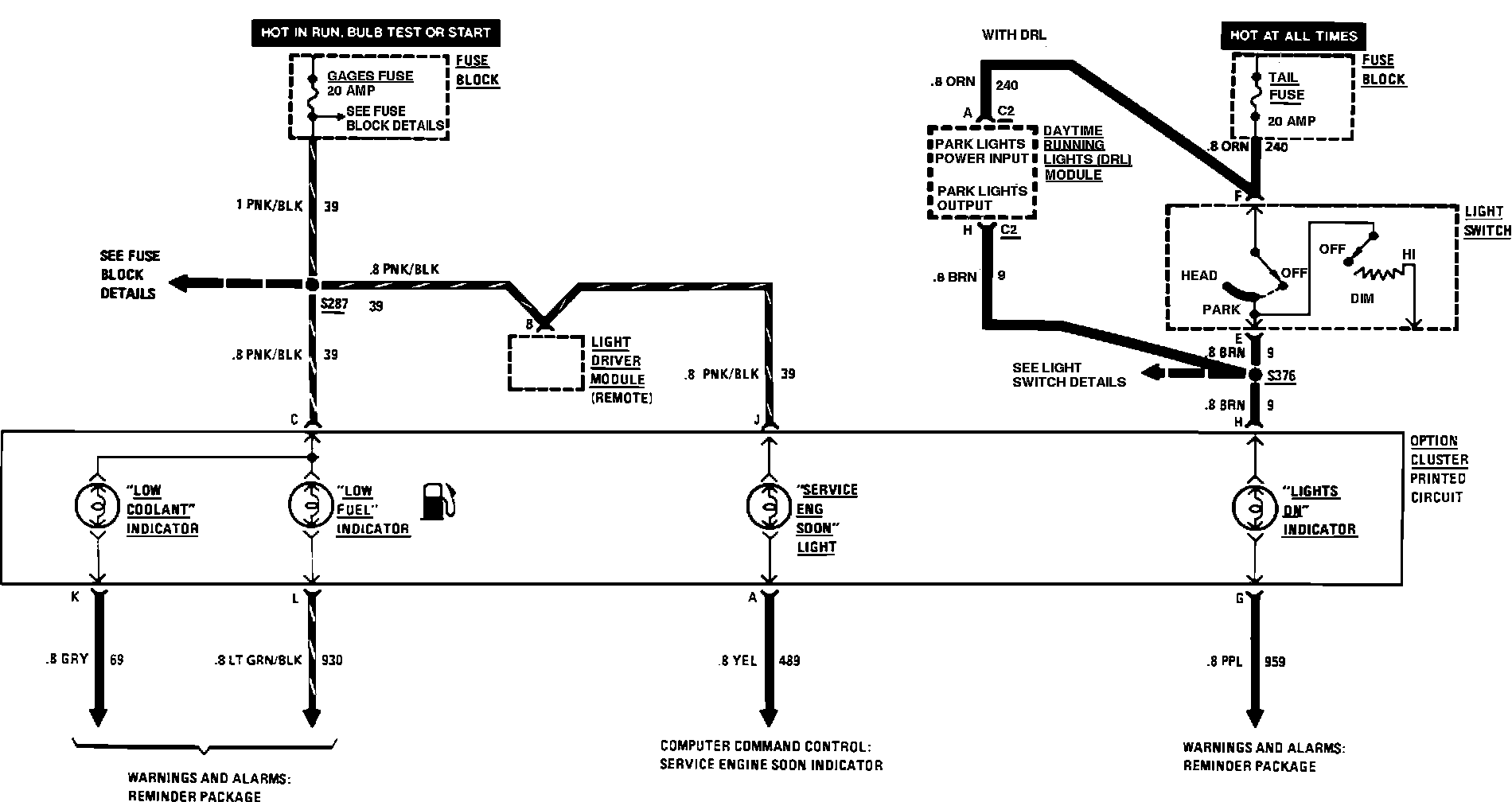

Instrument Panel Indicators:

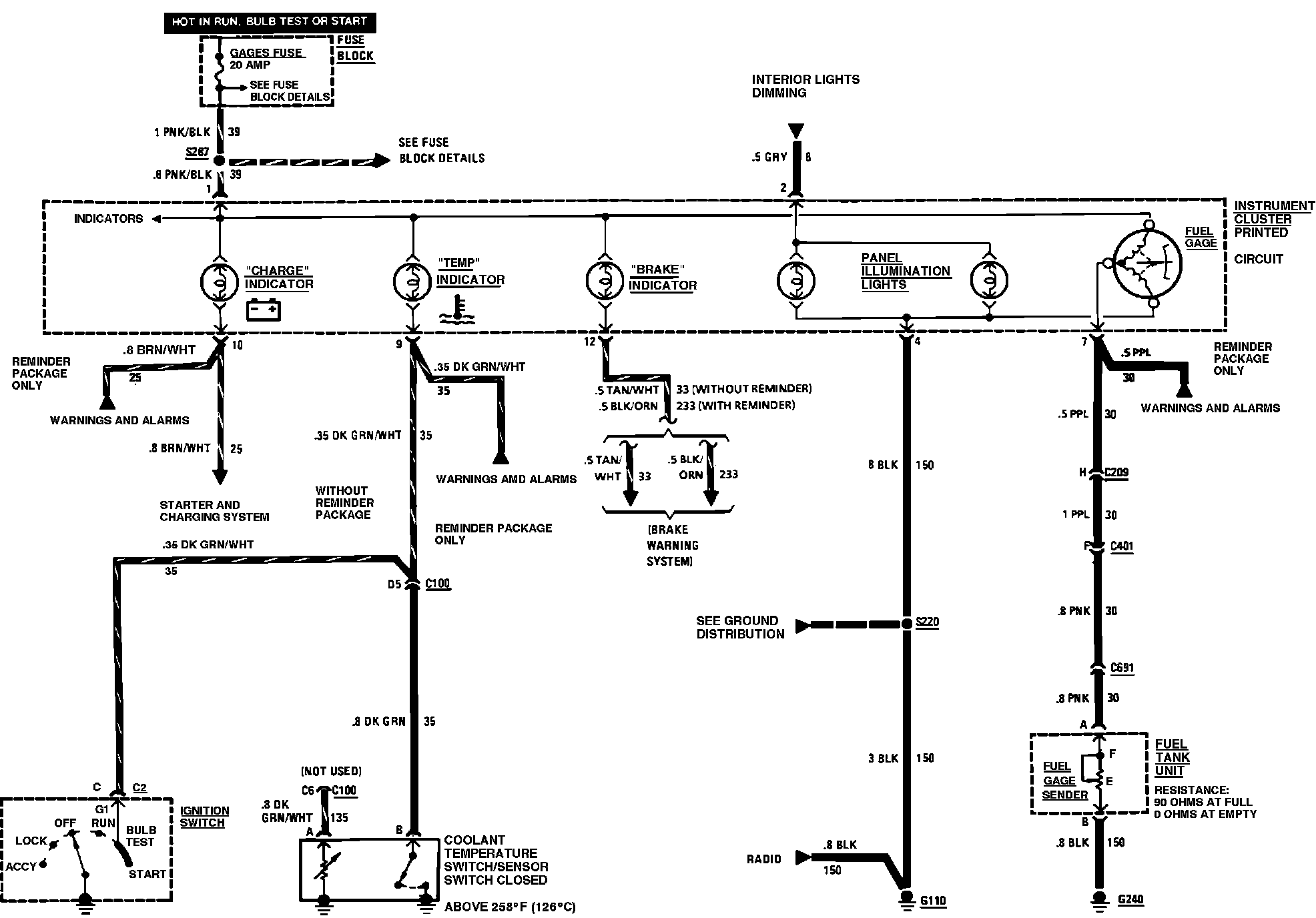

Instrument Panel Indicators:
