Home >> Oldsmobile >> 1990 >> Custom Cruiser V8-307 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Blower Controls >> With Electronic A/C

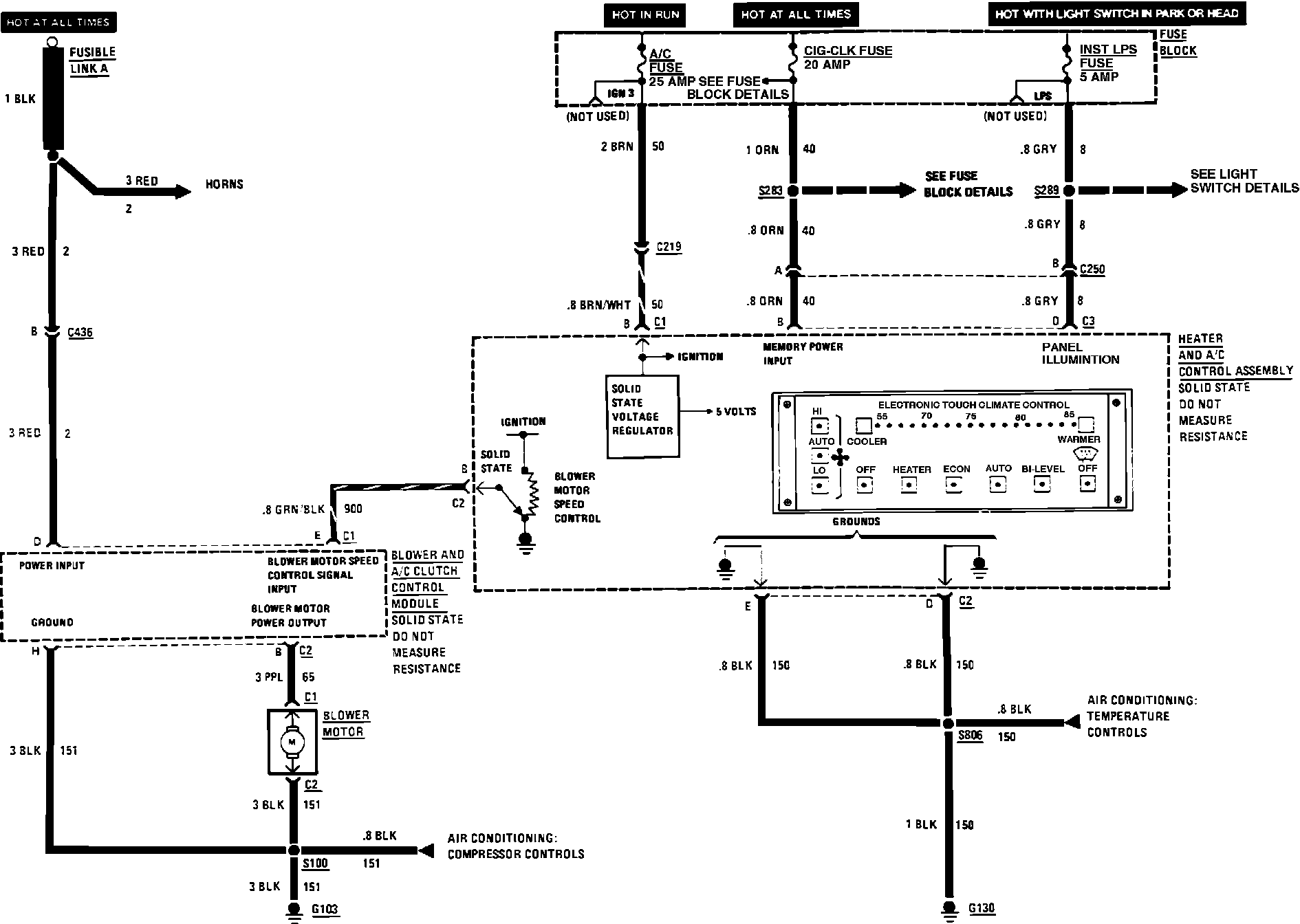

With Electronic A/C

Air Conditioning. Blower Controls. Electronic:
