Oldsmobile
>>
1990
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Courtesy Lamp
Courtesy Lamp

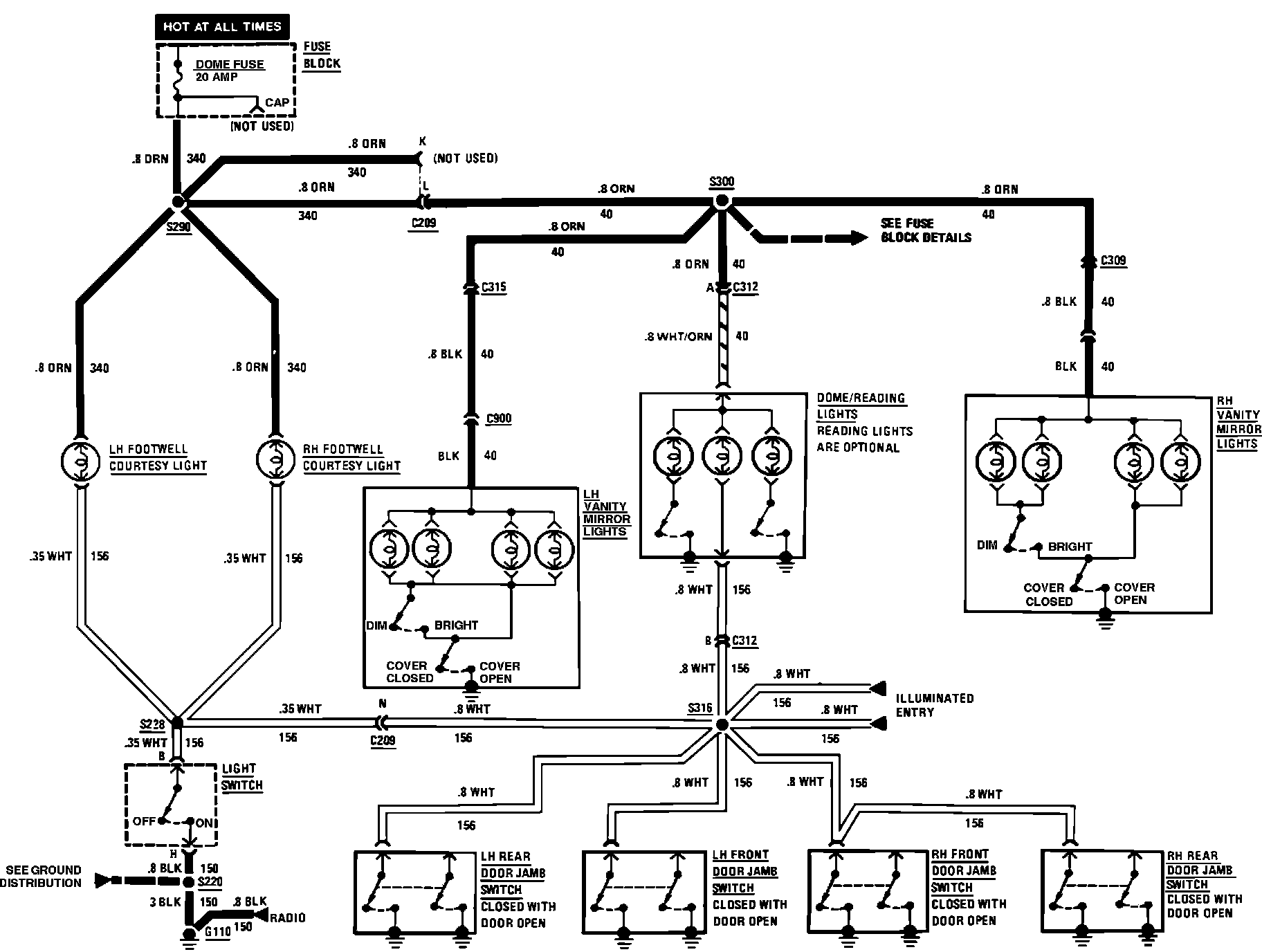

Interior Lamps. Courtesy, Dome, Reading & Vanity Mirror:
