Engine - Revised Chart A3 (Cranks But Will Not Start)
NUMBER: 91-T-247CORP.REF.NO: 316502
DATE: May 1993
SECTION: 6E3, V6
SUBJECT:
REVISED CHART A-3 - PART 1 OF 2
MODEL/YEARS:
1989-91 CUTLASS CIERA/CRUISER AND CUTLASS CALAIS WITH THE 3300 (VIN N) ENGINE

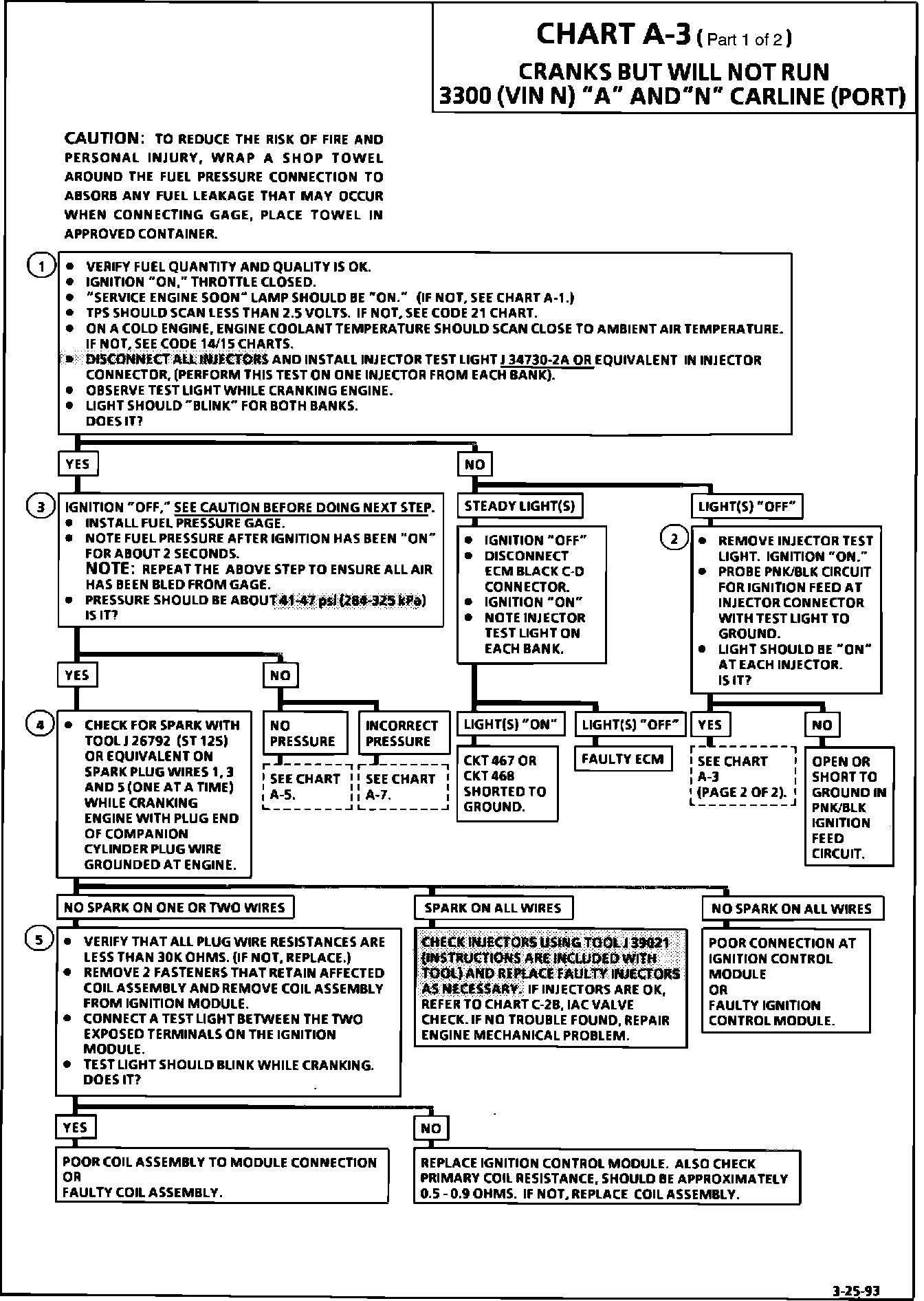

This bulletin updates Chart A-3, "Engine Cranks But Will Not Run" (Part 1 of 2) in Section 6E3, "Driveability and Emissions" for the 1989-91 Cutlass Ciera/Cruiser and Cutlass Calais equipped with the 3300 (VIN N) engine. The revised chart directs that all injectors be disconnected, allowing diagnosis of a "Cranks But Will Not Run" condition caused by a shorted injector coil.
Please mark a reference to this in the following service manuals:
^ 1989 Cutlass Calais, page 6E3-A-17
^ 1989 Cutlass Ciera/Cruiser, page 6E3-A-17
^ 1990 Cutlass Calais, page 6E3-A-17
^ 1990 Cutlass Ciera/Cruiser, page 6E3-A-17
^ 1991 Cutlass Calais, page 6E3-A-19
^ 1991 Cutlass Ciera/Cruiser, page 6E3-A-19
