Oldsmobile
>>
1990
>>
Calais L4-151 2.5L VIN U TBI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

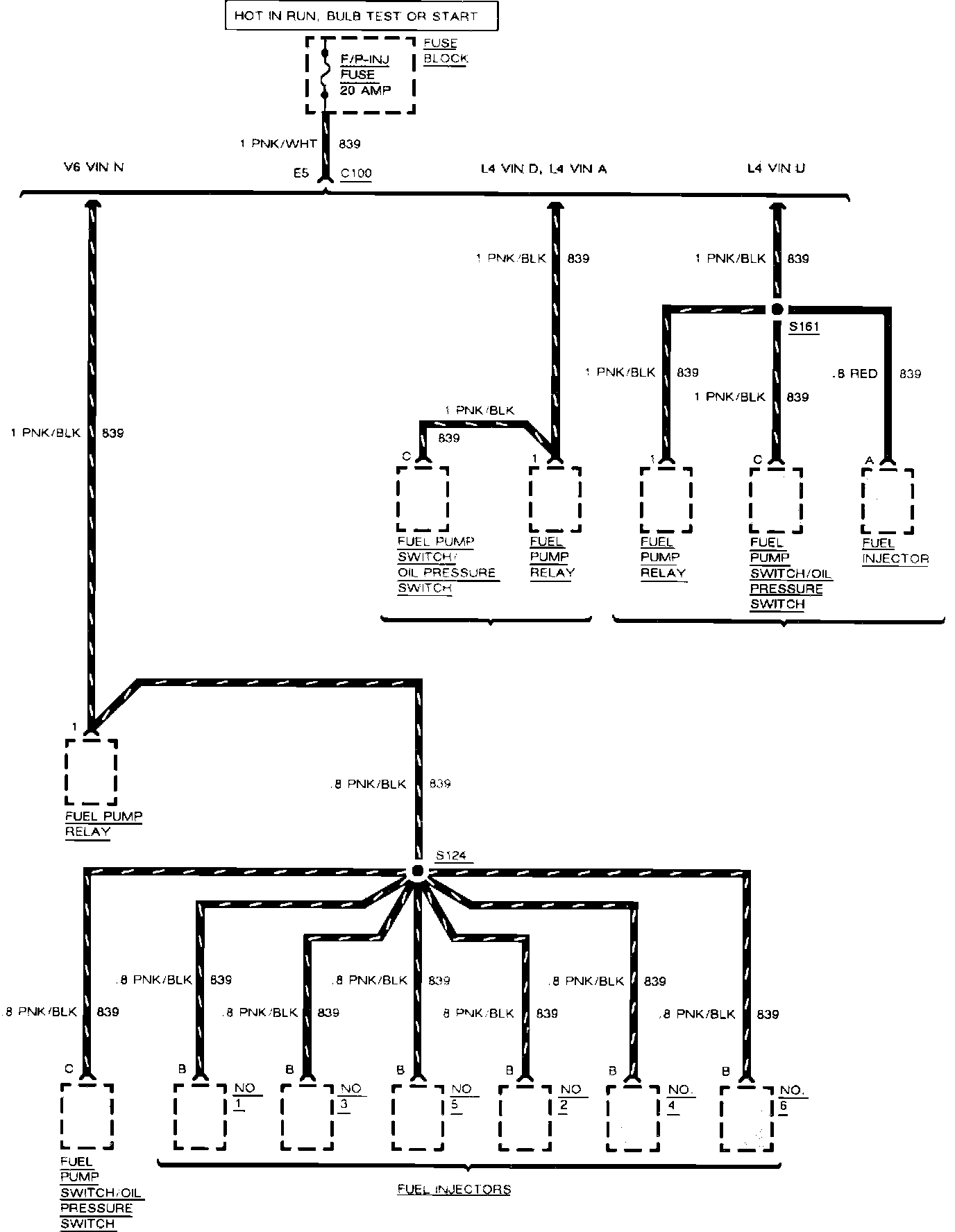

Fuel Pump and Injectors
Fuel Pump and Injectors
Fuse Block Details (Fuel Pump & Injectors):
