Courtesy, Ignition and Tail
Courtesy, Ignition and Tail

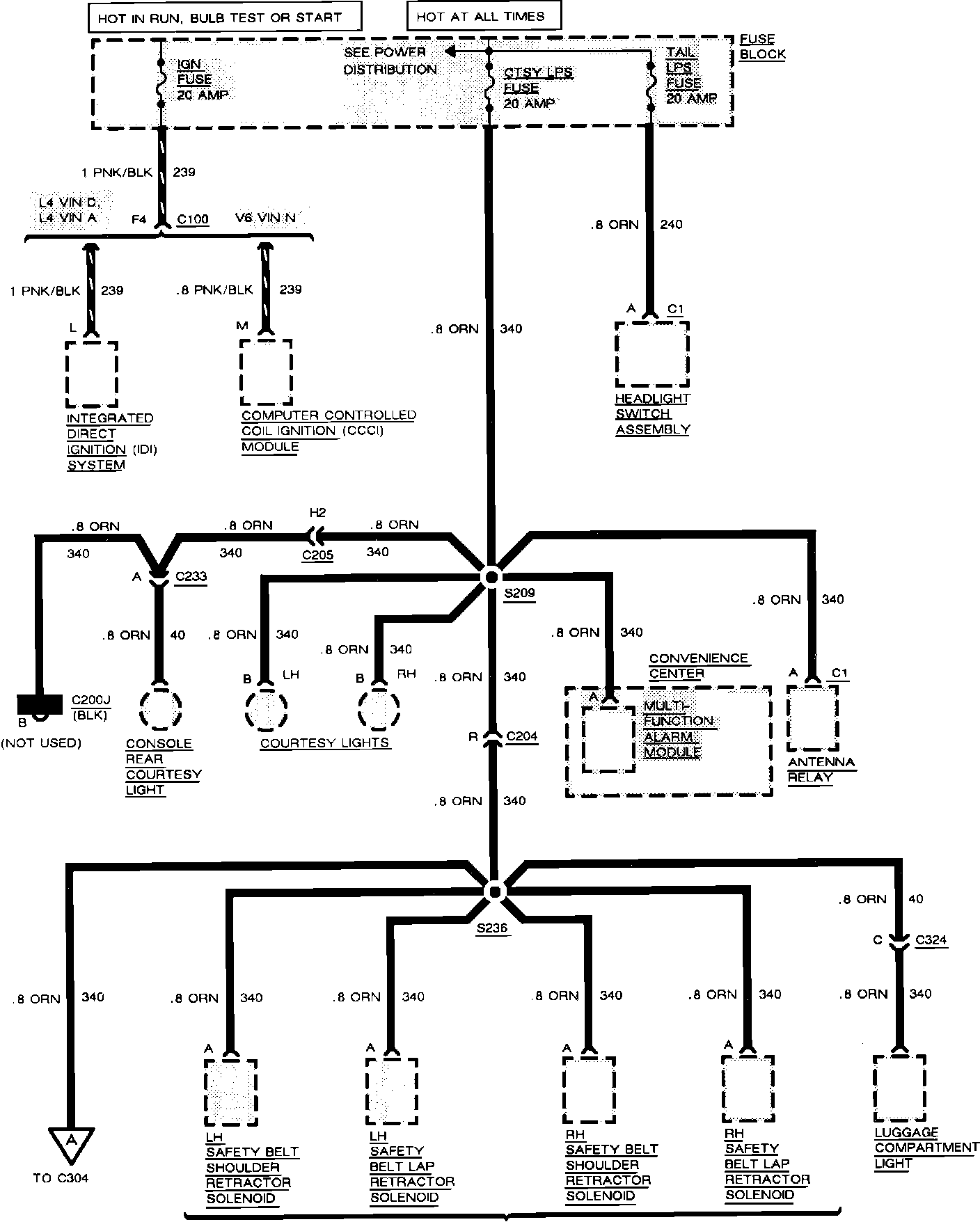

Fuse Block Details (Courtesy, Ignition & Tail):
