A/C, Heater, Power Accessories and Power Window
A/C, Heater, Power Accessories and Power Window

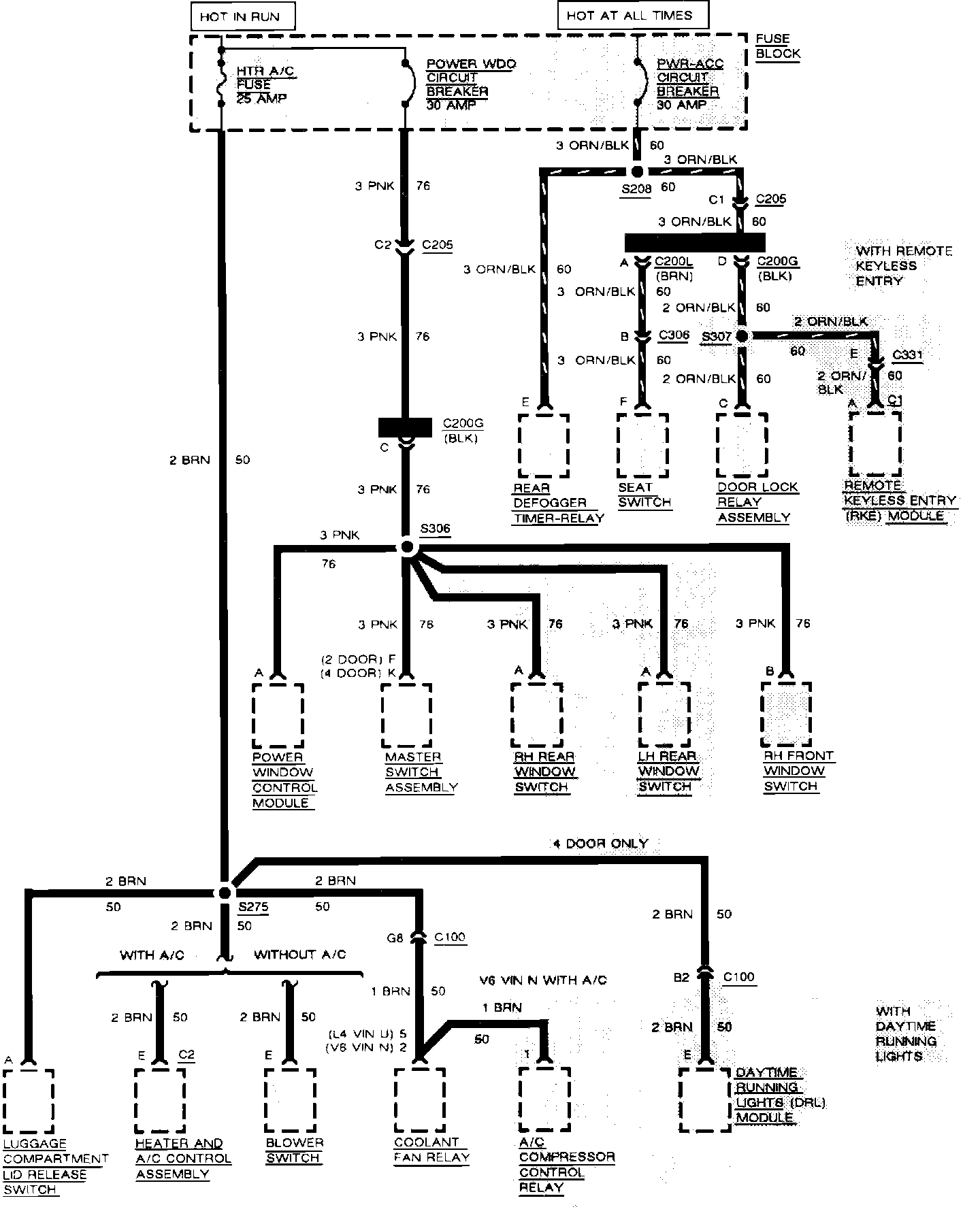

Fuse Block Details (A/C, Heater, Power Accessories & Power Window):
