Calais L4-151 2.5L VIN U TBI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
License Plate Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

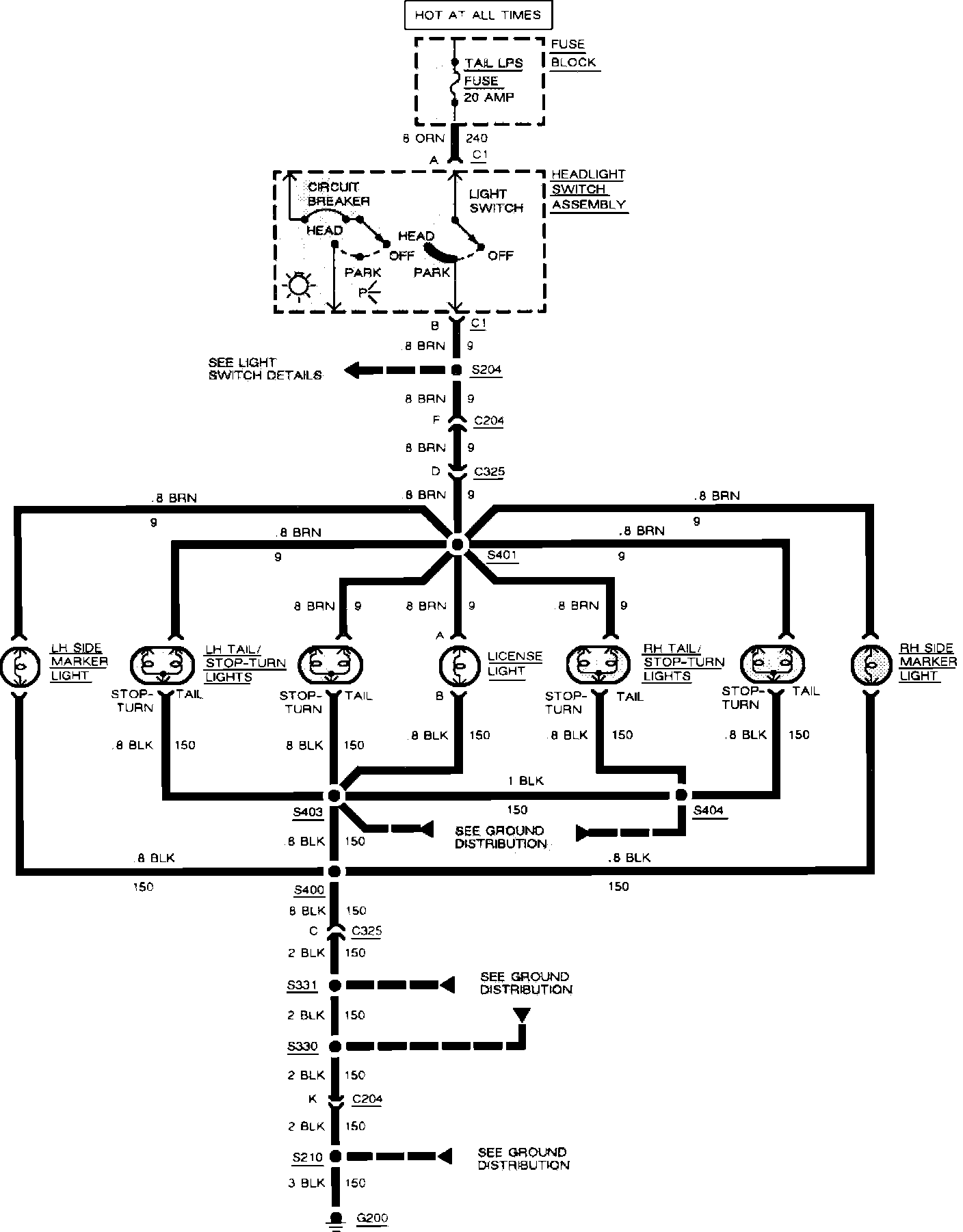

Exterior Lamps (License, Side Marker & Tail):
