Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1990
>>
Calais L4-151 2.5L VIN U TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Map Light

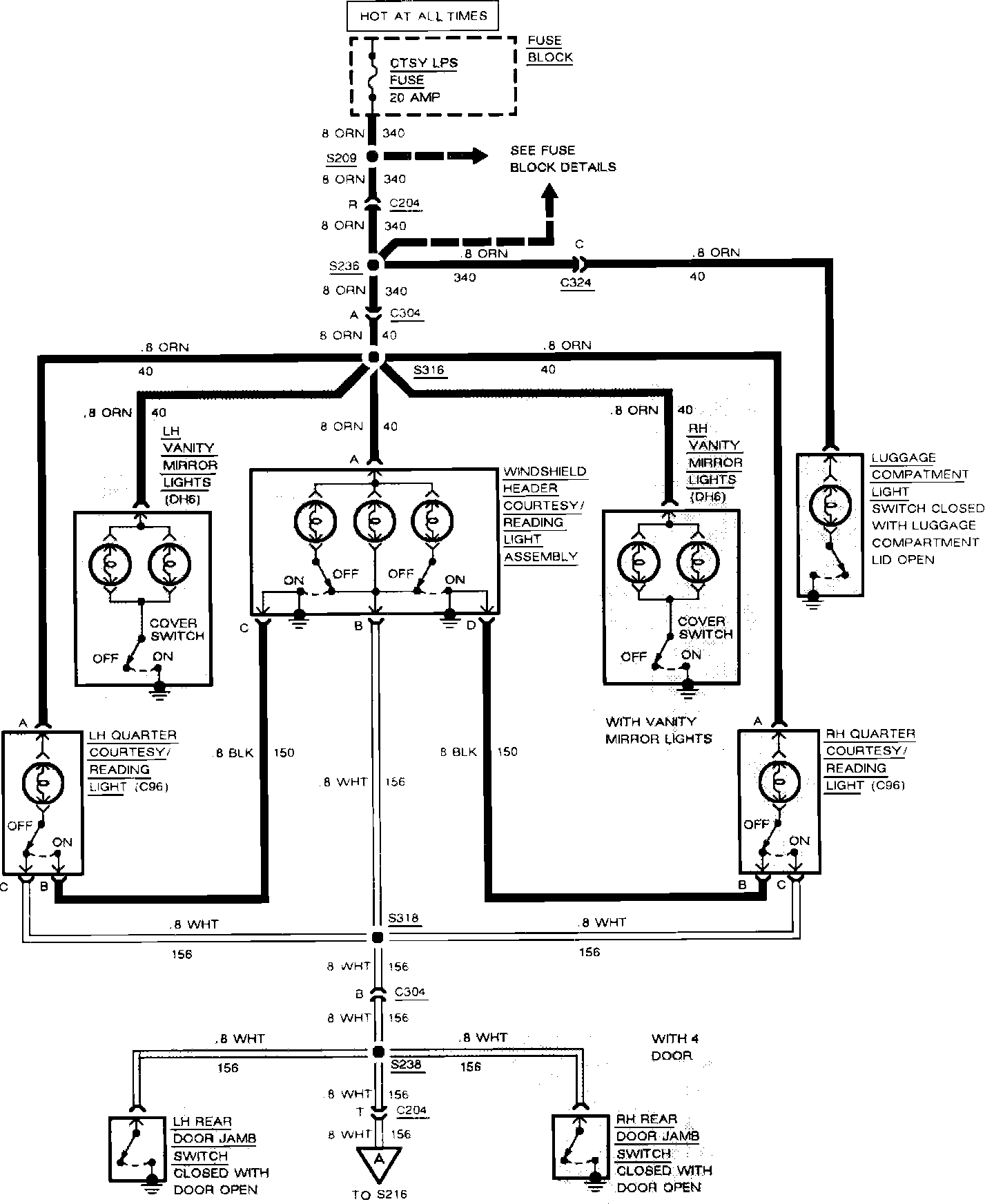

Map Light
Interior Lamps (Courtesy, Dome, Luggage, Reading & Vanity):
