Home
>>
Oldsmobile
>>
1990
>>
Calais L4-151 2.5L VIN U TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Headlamp
>>

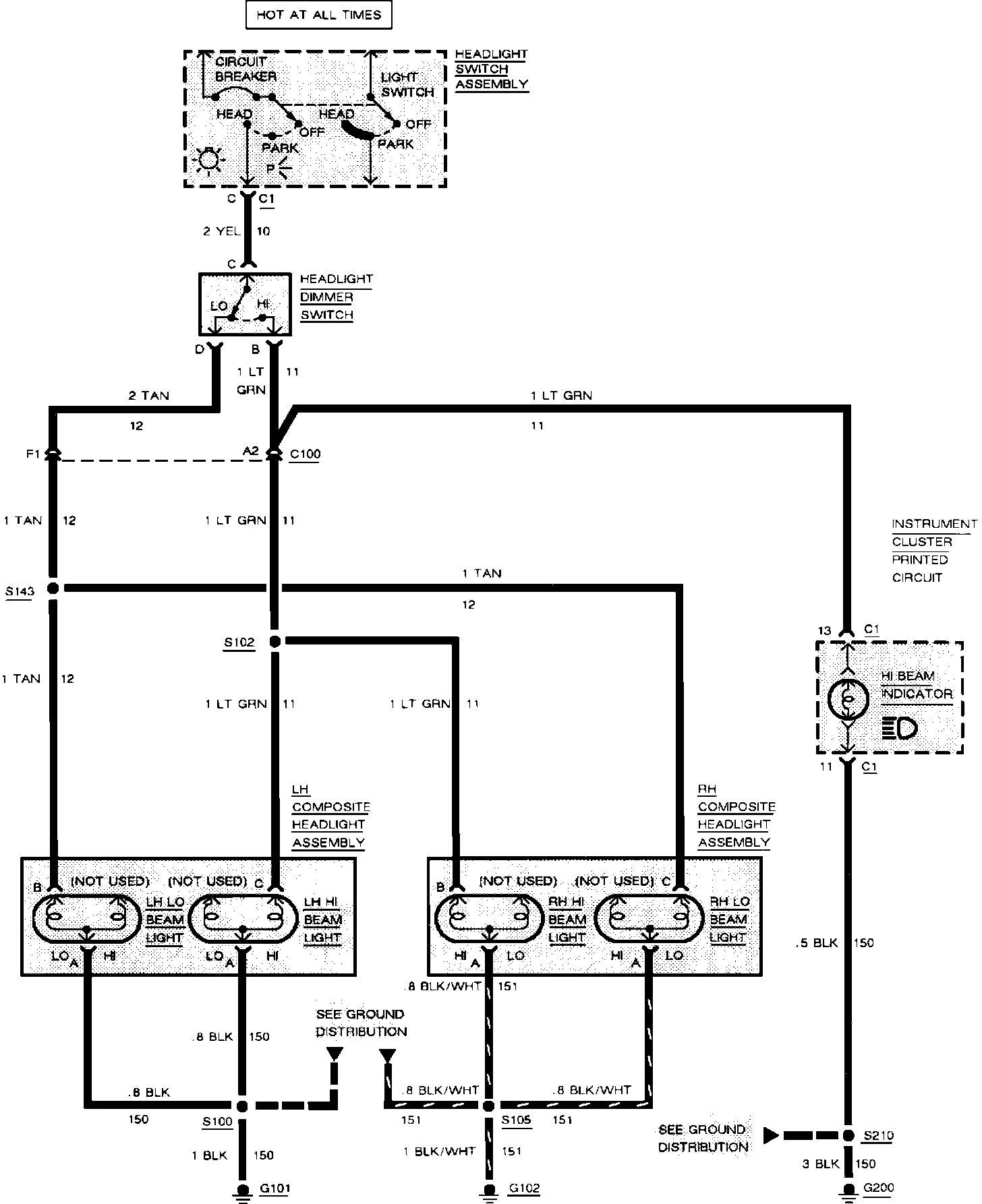

System Diagram
>>
Less Fog Lights
Less Fog Lights
Headlamps:
