Calais L4-151 2.5L VIN U TBI
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Driver/Vehicle Information Display
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

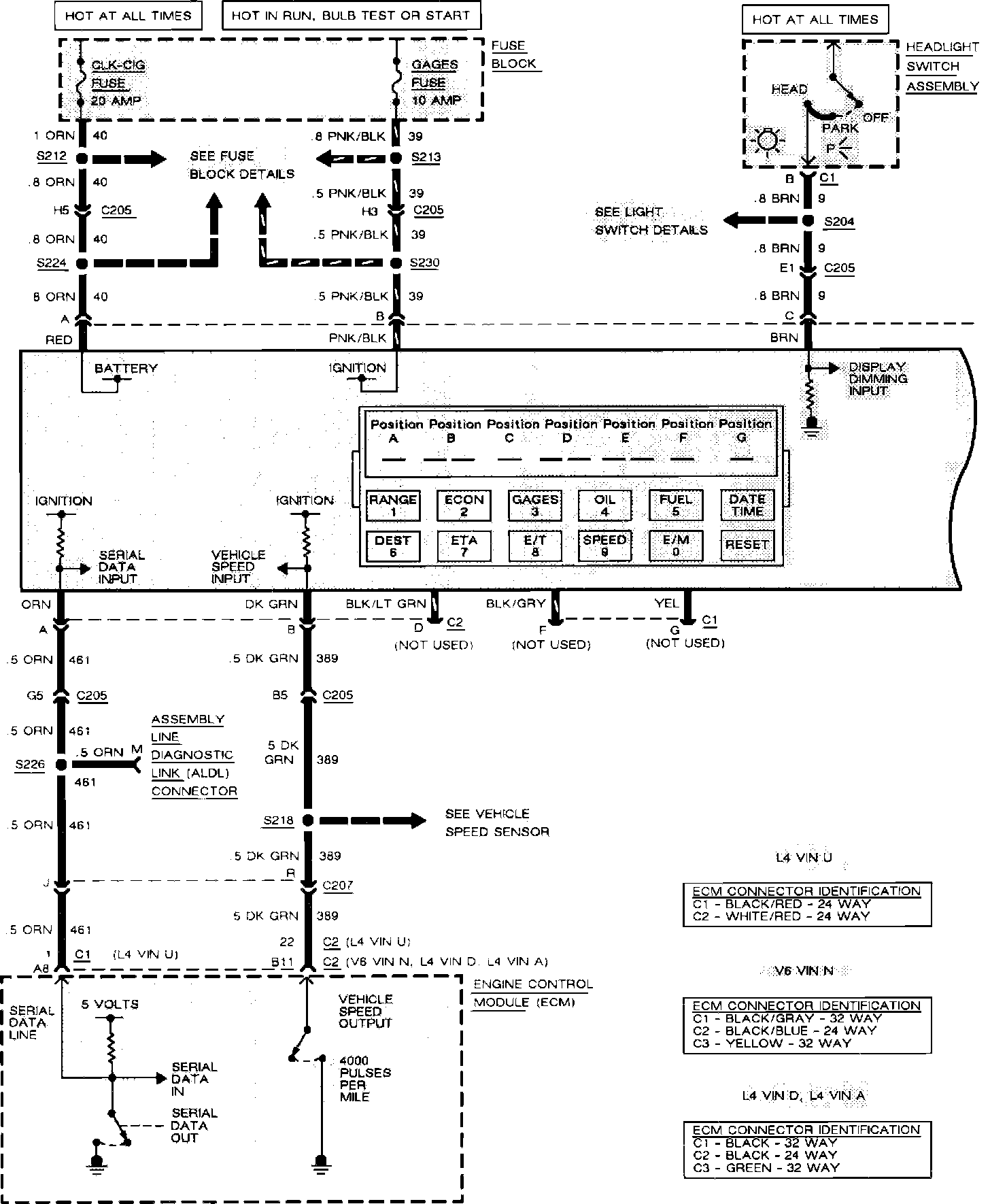

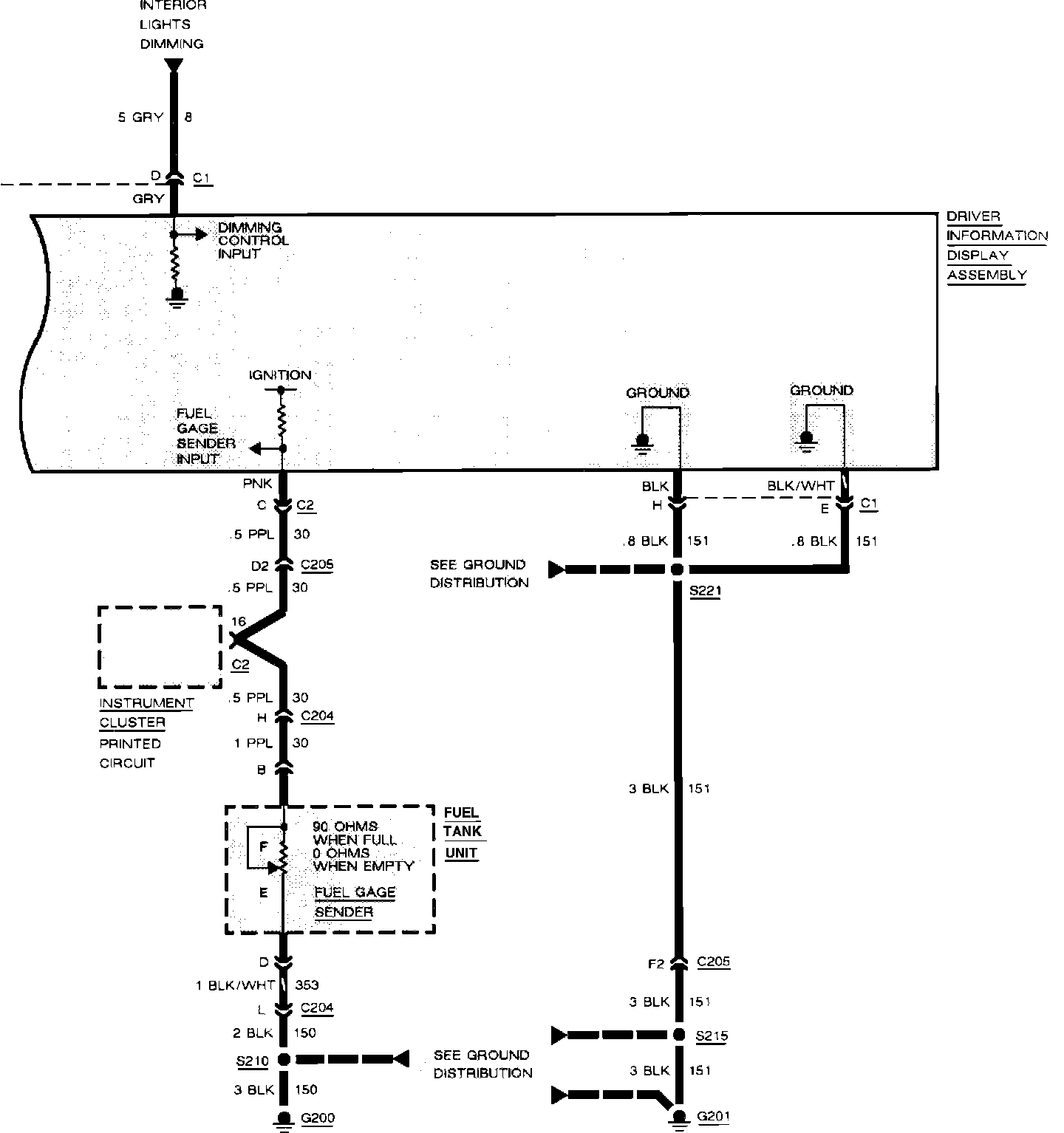

Driver Information Center:
Driver Information Center:
