A/T - Revised DTC 62 (Gear Switches) Diagnostic Chart

9219oldsmobile02

NUMBER: 90-T-16

CORP.REF.NO: 916525

DATE: October 1989

SECTION: 6E


SUBJECT:

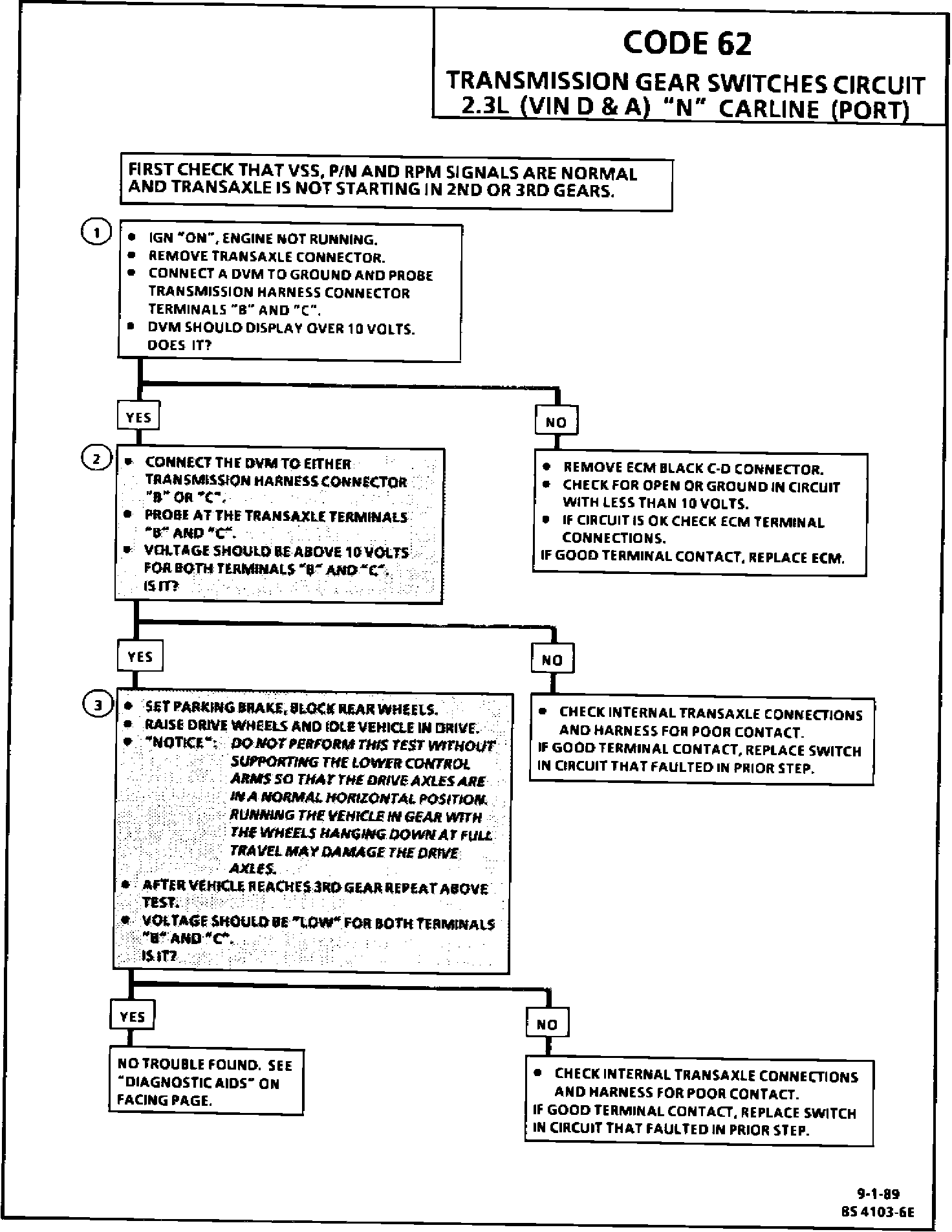

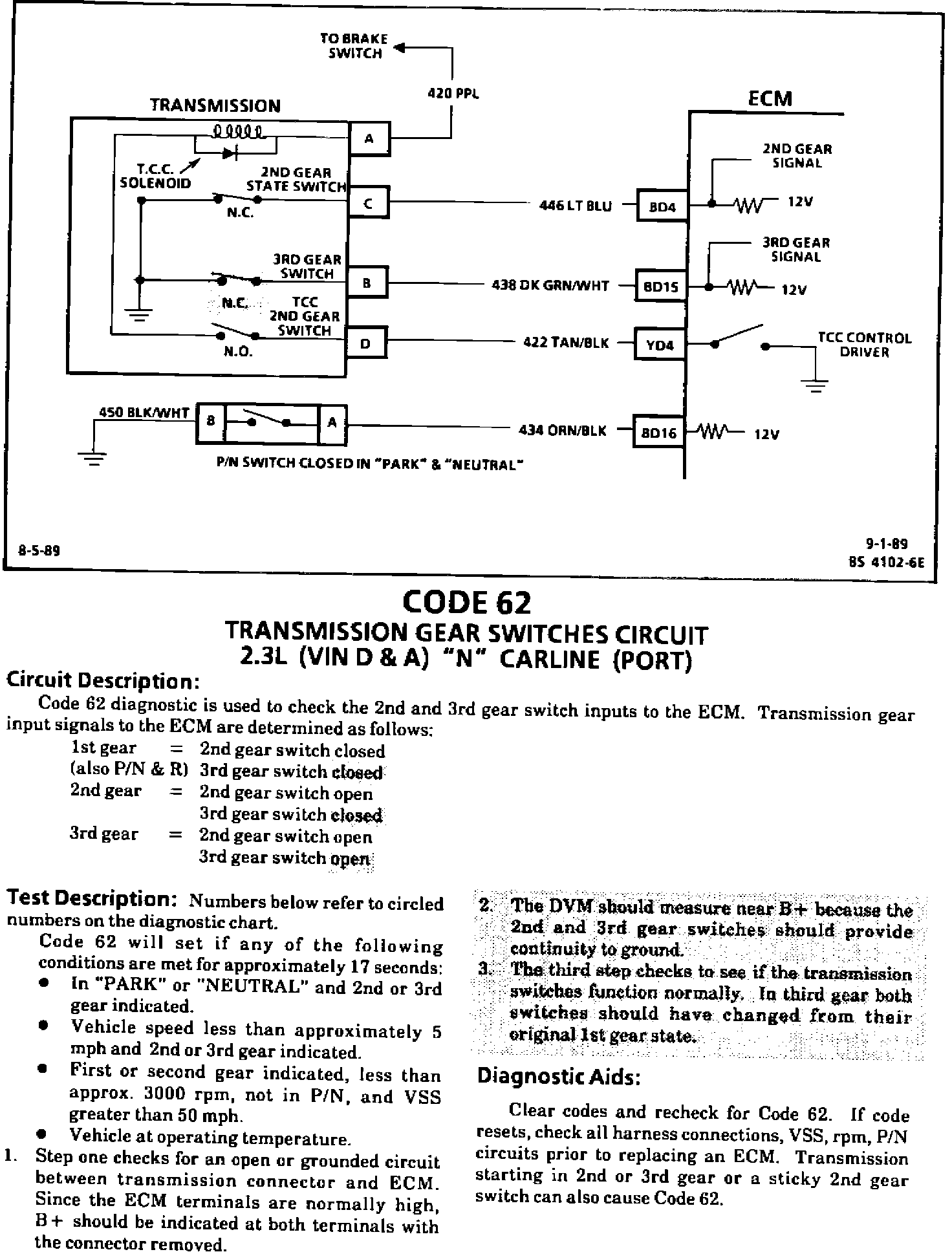

SERVICE MANUAL UPDATE-SECTION 6E3 - DRIVEABILITY AND EMISSIONS REVISED CODE 62 FACING PAGE AND CHART

MODELS/YEARS:
1990 CUTLASS CALAIS WITH 2.3L (VIN D AND A)








This bulletin serves to update the Code 62 chart and facing page in Section 6E3 "Driveability And Emissions" in the 1990 Service Manuals with 2.3L "N" (VIN D and A) applications. Please mark a reference to this bulletin in your 1990 Cutlass Calais Service Manual at Page 6E3-A-70 and 6E3-A-71.
