Power Steering Pump Pulley - Wobble Condition
90oldsmobile02SUBJECT: POWER STEERING PUMP DRIVE PULLEY WOBBLE AND REVISED SERVICE MANUAL PROCEDURE FOR POWER STEERING PUMP DRIVE PULLEY REMOVAL AND INSTALLATION (FIRST & SECOND DESIGN)
MODELS/YEARS: 1990 CUTLASS CALAIS AND CUTLASS SUPREME
MODELS EQUIPPED WITH 2.3L ENGINE (VIN CODE D & A)
NUMBER: 90-T-46
CORP. REF. NO: 976113
DATE: February 1990
SECTION: 6A7
This bulletin is separated into two parts. Part I addresses 1990 Quad 4 power steering pump drive pulley wobble (condition, cause and correction). Part II revises the 1990 service manual procedure for power steering pump drive pulley removal and installation on the Quad 4 engine.
PART I
POWER STEERING PUMP DRIVE PULLEY WOBBLE
CONDITION:
1990 Cutlass Calais and Cutlass Supreme models equipped with a 2.3L Quad 4 or High Output Quad 4 engine built prior to engine number D041139, were assembled with a second design power steering pump drive pulley. Some of these pulleys may exhibit a noticeable wobble (side-to-side movement) while the engine is running.
CAUSE:
This condition is the result of excessive lateral run-out of the power steering pump drive pulley.
CORRECTION:
Complaint vehicles can be corrected by installing a first design power steering pump drive pulley, part number 22532167. The first design pulley has been reinstated in 1990 Quad 4 and High Output Quad 4 production effective with engine number D041139.
PARTS INFORMATION:
Parts are currently available from GMSPO.
PULLEY DESIGN IDENTIFICATION:
First Design 1987 through 1989: Pulley has solid face (no holes) part number
22532167
Second Design 1990: Pulley face has three (3) holes part number 22545412.
1990 Cutlass Calais and Cutlass Supreme models equipped with a Quad 4 engine assembled with the second design pulley that exhibit a wobble condition, can be corrected by the following service procedure.

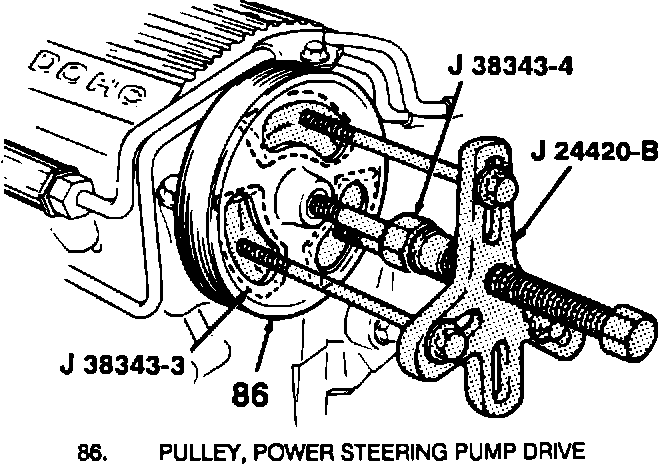

Figure 1:
SERVICE PROCEDURE:
Tools Required:
J 24420-B Puller J 38343 Pulley Remover J 36015 Pulley Installer
1 Position power steering pump aside to gain access to pulley. Refer to Figure 1.
2. Install forcing screw pilot J 38343-4 into pulley end of camshaft.
3. Install adapters J 38343-3 behind pulley one at a time while threading the 3/8" x 3-1/2" bolts included in J 38343 into them, through the holes in the pulley.
4. While holding J 38343-4 with a wrench, remove pulley with pulley remover J 38343.
5. Using tool J 36015 install new pulley, part number 22532167 onto end of intake camshaft.
6. Reposition and install power steering pump assembly, leaving adjustment bolts slightly loose.
7. Install power steering pump drive belt and tension as follows.

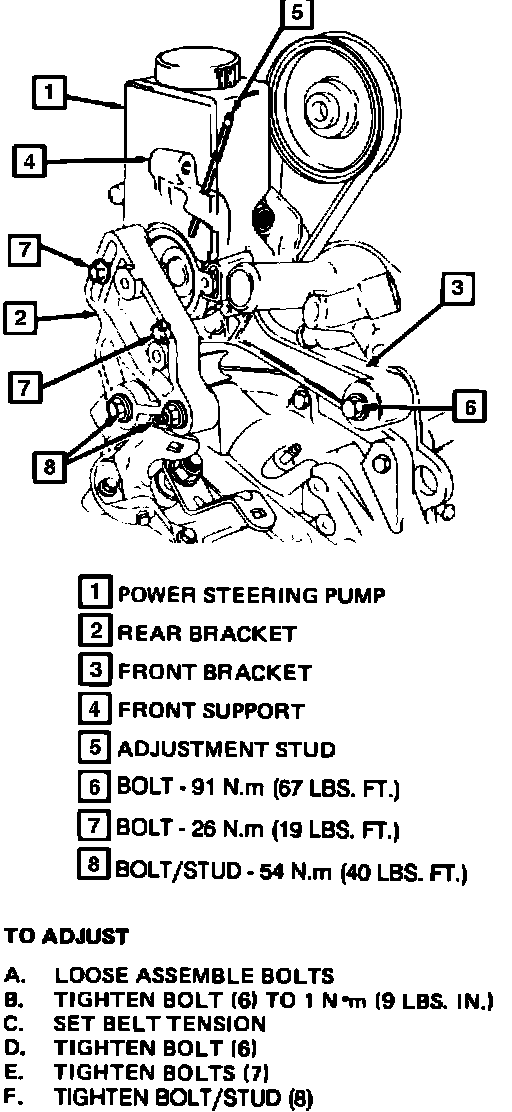

Figure 2:
ADJUSTING BELT TENSION:
Tool Required:
J 36018 Belt Tension Gage
1. Place gage on belt.
2. With pump adjusting bolts slightly loose, set belt tension to 500 newtons (110 pounds) by turning adjustment stud. Refer to Figure 2.
3. Tighten pump adjustment bolts to specifications noted in Figure 2.
WARRANTY INFORMATION:
Labor Operation: E8360
Labor Time: 0.5 Hours
Trouble Code: 92
PART II
REVISED SERVICE MANUAL PROCEDURE, 1990 2.3L ENGINE, SECTION 6A7
1990 Quad 4 and High output Quad 4 engines built prior to engine number, D041139 used a second design power steering pump drive pulley, it has been noted in some cases, that the second design pulley can exhibit excessive lateral run-out resulting in noticeable pulley wobble when the engine is running. To correct this condition in production, the 1989 (first design) pulley was reinstalled on all 1990 Quad 4 and High Output Quad 4 engines effective with engine number D041139. Accordingly, if a second design power steering pump drive pulley is removed from a 1990 Quad 4 or High Output Quad 4 engine it should be replaced with the 1989 (first design) pulley, part number 22532167.
The following information replaces the power steering pump drive pulley removal and installation procedure on Page 6A7-24 of the 1990 Cutlass Calais Service Manual, and Page 6A7-24 of the 1990 Cutlass Supreme Service Manual.
Figure 1:
Figure 1 in this bulletin replaces Figure 36 on Page 6A7-25 in both the 1990 Cutlass Calais and Cutlass Supreme Service Manuals.
SERVICE PROCEDURE:
Tools Required:
J 38343 Pulley Remover (Second Design Pulley) J 29785-A Pulley Remover (First Design Pulley) J 36014-A Pulley Forcing Screw (First Design Pulley) J 36015 Pulley Installer
POWER STEERING PUMP DRIVE PULLEY REMOVAL - FIRST DESIGN PULLEY
1. Position power steering pump aside to gain access to pulley.
2. Using pulley remover, J 29785-A with forcing screw, J 36014-A remove pulley from end of camshaft.
POWER STEERING PUMP DRIVE PULLEY REMOVAL - SECOND DESIGN PULLEY
1. Position power steering pump aside to gain access to pulley. Refer to Figure 1.
2. Install forcing screw pilot J 38343-4 into pulley end of camshaft.
3. Install adapters J 38343-3 behind pulley one at a time while threading the 3/8" x 3-1/2" bolts included in J 38343 into them, through the holes in the pulley.
4. While holding J 38343-4 with a wrench, remove pulley with pulley remover J 38343.
INSTALLING POWER STEERING PUMP DRIVE PULLEY - FIRST DESIGN PULLEY
1. Using Tool J 36015 install pulley onto end of intake camshaft.
2. Reposition and install power steering pump assembly, leaving adjustment bolts slightly loose.
3. Install power steering pump drive belt and tension as follows.
Figure 2:
ADJUSTING BELT TENSION:
Tool Required:
J 36018 Belt Tension Gage
1. Place gage on belt.
2. With pump adjustment bolts slightly loose, set belt tension to 500 newtons (110 pounds) by turning adjustment stud. Refer to Figure 2.
3. Tighten pump adjustment bolts to specification. Refer to Figure 2.
