A/T - New Roller Clutch

91olds03

NUMBER: 91-T-58

CORP.REF.NO: 177103

DATE: February 1991

SECTION: 7A, 3T40


SUBJECT: NEW (NEW DEPARTURE HYATT) ROLLER CLUTCH


MODELS/YEARS: ALL 1991 AND PRIOR MODEL YEAR OLDSMOBILES
EQUIPPED WITH HYDRA-MATIC 3T40 TRANSAXLES (RPO - MD9)

Figure 1:

Figure 2:

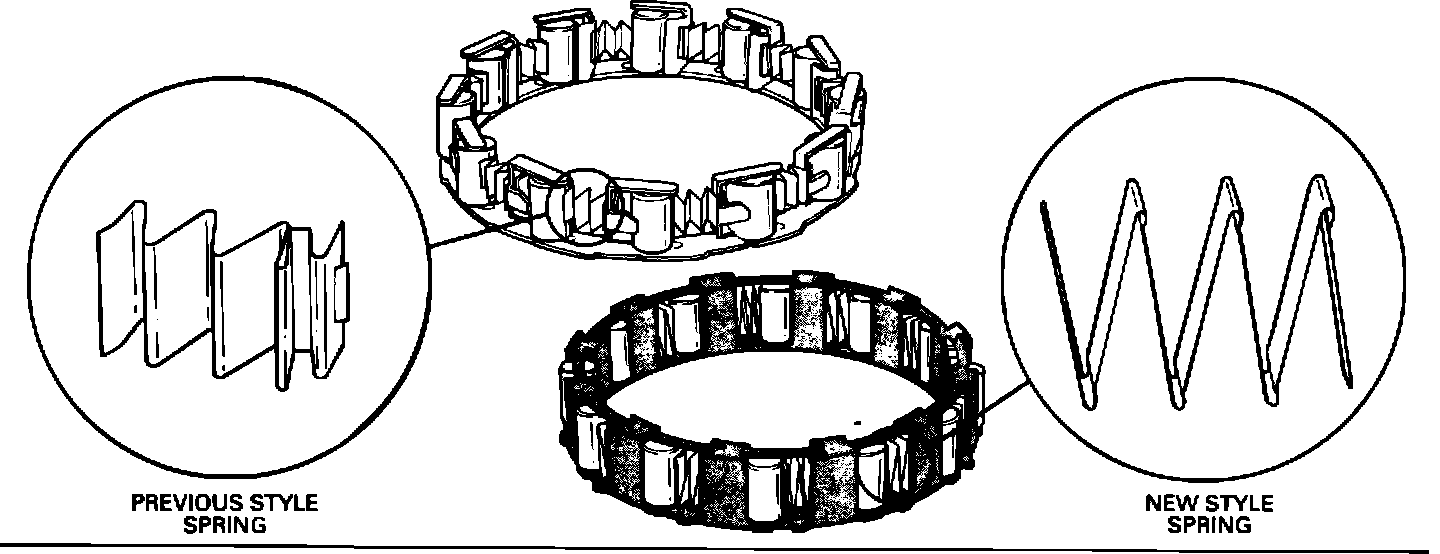

Hydra-Matic has released a new NDH (New Departure Hyatt) Roller Clutch (662) for all HYDRAMATIC 3T40 transaxles, for increased Lo Roller clutch durability. This roller clutch has a new spring and roller holding cage which is plastic and black in color. The springs located inside the roller clutch have been rotated to a position of 90 degrees. See Figures 1 and 2.


DATE OF PRODUCTION CHANGE:

This new roller clutch went into production October 23, 1990 (Julian Date 296) for all Willow Run built models. Windsor built models will be equipped with this new roller clutch at a future date.

SERVICE PARTS INFORMATION:

This new roller clutch may be used in all prior model year HYDRA-MATIC 3T40 transaxles. Whenever ordering this new NDH roller clutch, refer to the following part number:

Part Number Description

930681 (NDH) Roller Clutch Assembly

Parts are currently available from GMSPO.

SERVICE MANUAL REFERENCE:

Whenever replacement and/or installation of a NDH roller clutch is necessary on any HYDRA-MATIC 3T40, refer to the Unit Repair Section of your service manual.
