Home
>>
Oldsmobile
>>
1989
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
>>
Circuit 23
Circuit 23

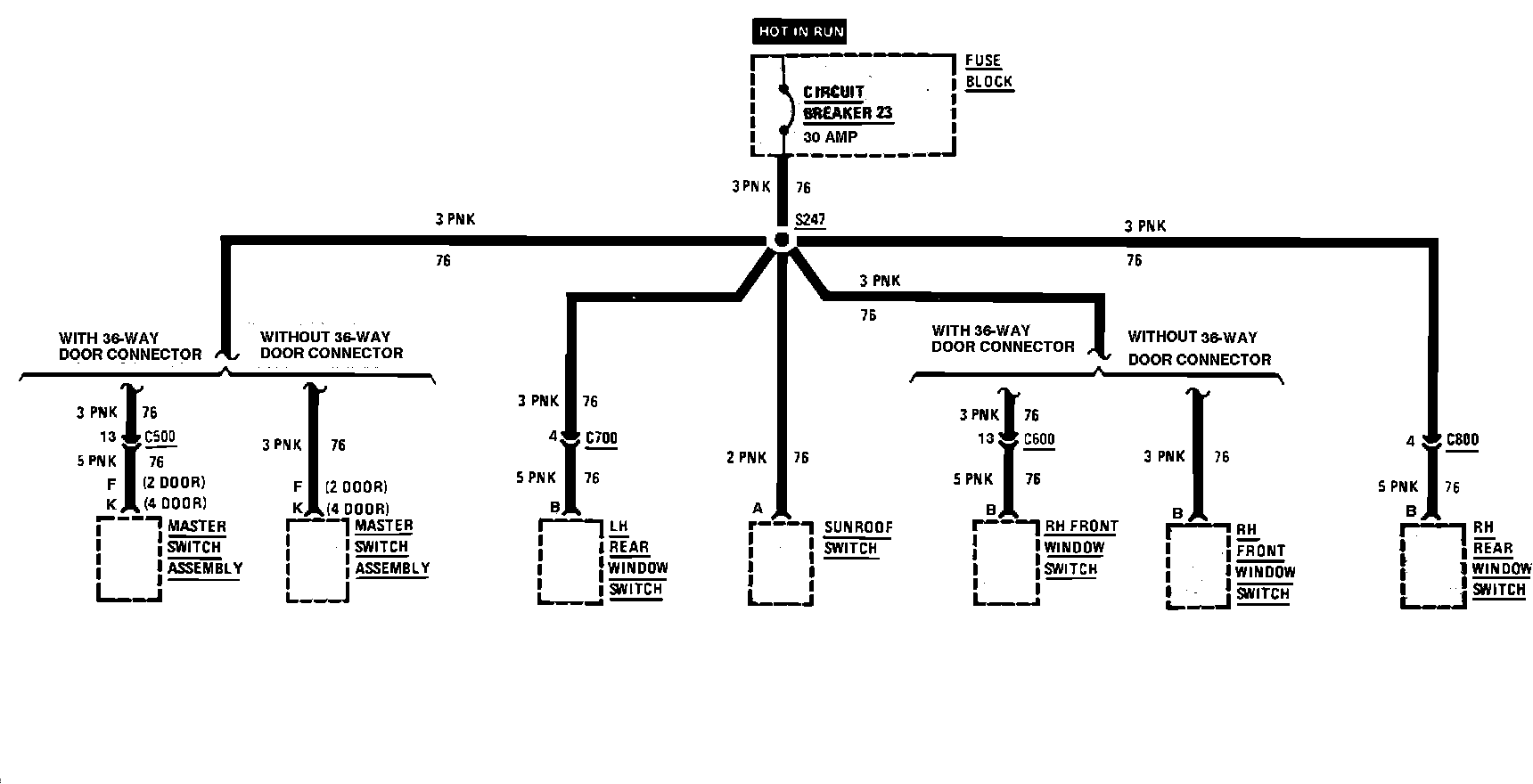

Fuse Block Details (Circuit Breaker 23):
