Home
>>
Oldsmobile
>>
1989
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Charts
>>
Chart E-5, Poor Vehicle Tracking During Anti-Lock Stops
Chart E-5, Poor Vehicle Tracking During Anti-Lock Stops

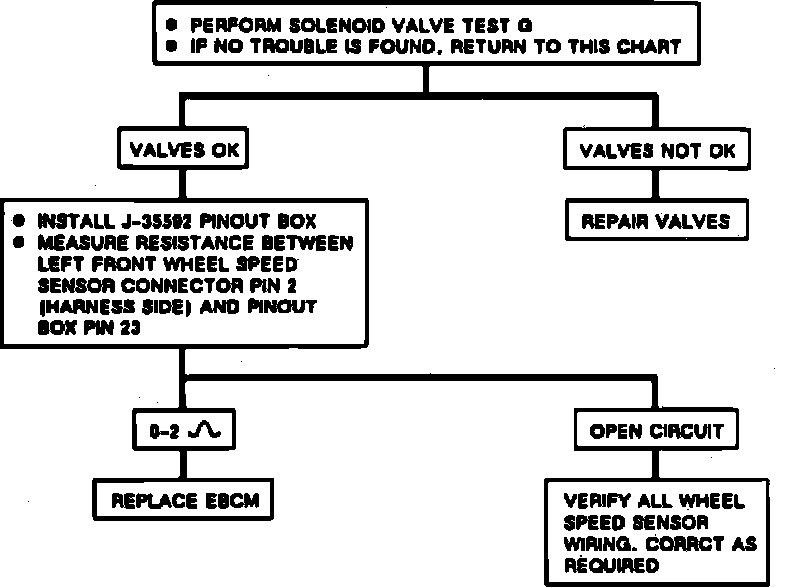

Fig. 89 Chart E-5, Poor Vehicle Tracking During Anti-lock Stops. 1989-90 Models Except 6000:
