Power Door Locks - Inoperative, Manual Operation Normal
90oldsmobile06SUBJECT POWER DOOR LOCKING SYSTEM (DIAGNOSIS AND
REPAIR)
MODELS/YEARS 1989-90 EIGHTY-EIGHT AND NINETY-EIGHT MODELS
NUMBER: 90-T-95
CORP. REF. NO: 001001
DATE: May 1990
SECTION: 10-5

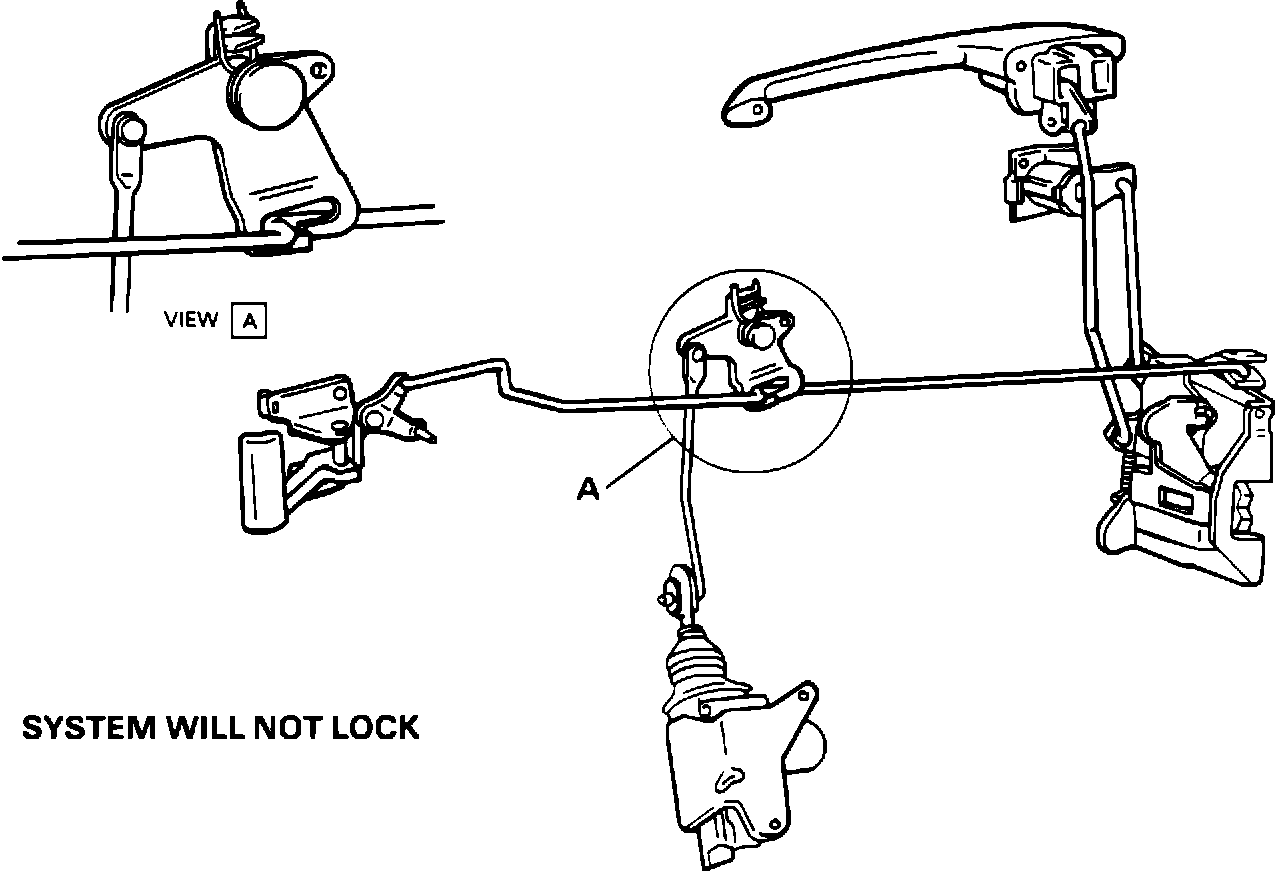

Figure 1:

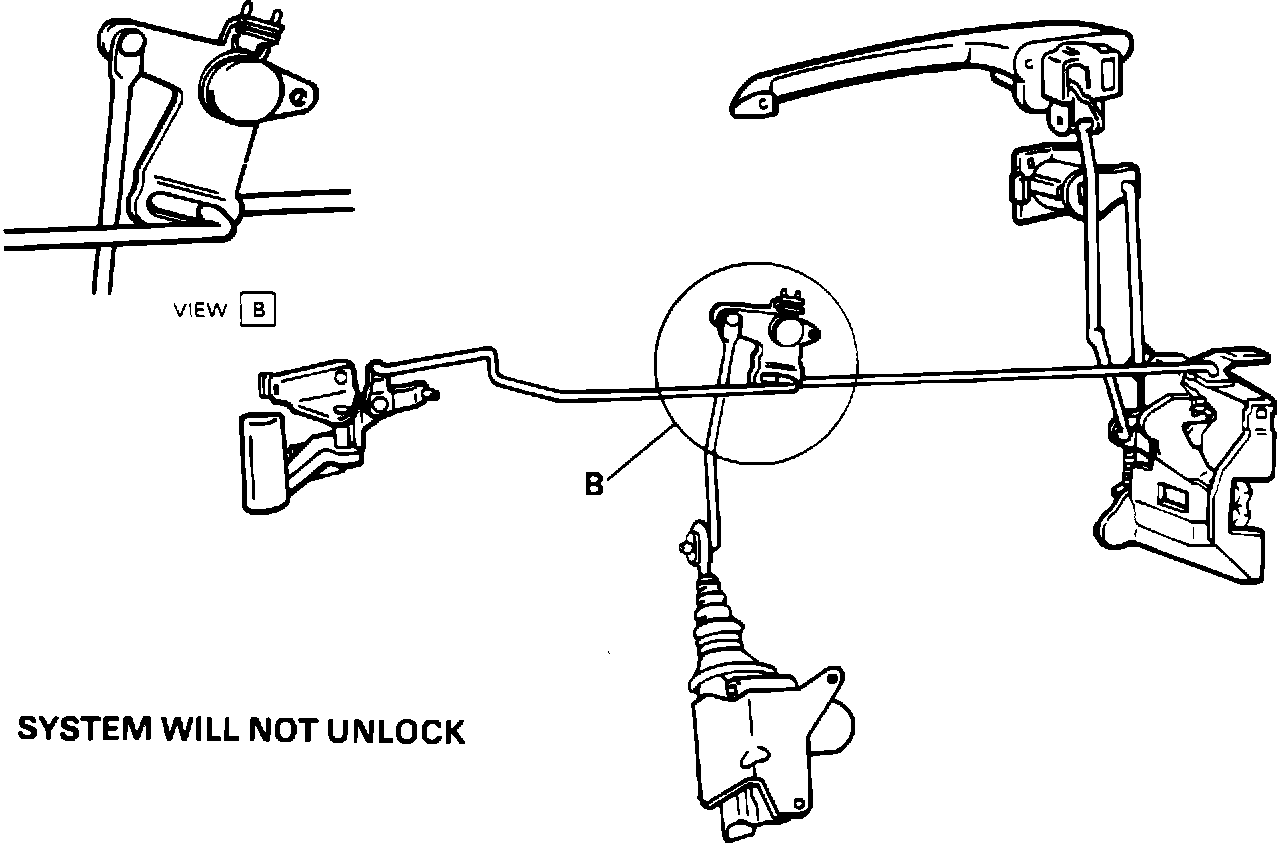

Figure 2:
CONDITION:
Power Door Lock will not lock or unlock the latch, but manual operation is normal.
CAUSE:
Under certain build tolerance conditions the bellcrank assembly cannot move the inside locking rod far enough to trip the latch. (View A, Figure 1; View B, Figure 2)
DIAGNOSIS:
Verify that the system functions properly in the manual mode.
CORRECTION:
Remove the trim pad and verity that all rod attachments are secure and that all locking system components are properly installed.
Operate the system manually and verify that there are no binds in the locking system.
Operate the power actuator and determine if the bellcrank is moving the locking rod far enough to trip the latch in either the locking or unlocking direction. (Figures 1 and 2)

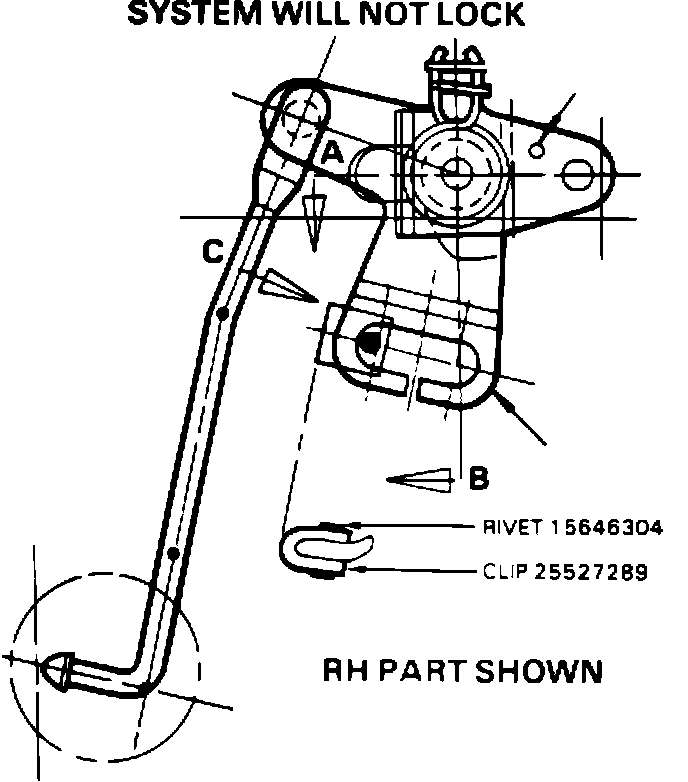

Figure 3:
If system will not lock, install Clip Part Number 25527289 and Rivet Part Number 15646304 to front of slot opening in bellcrank. (See Figure 3)

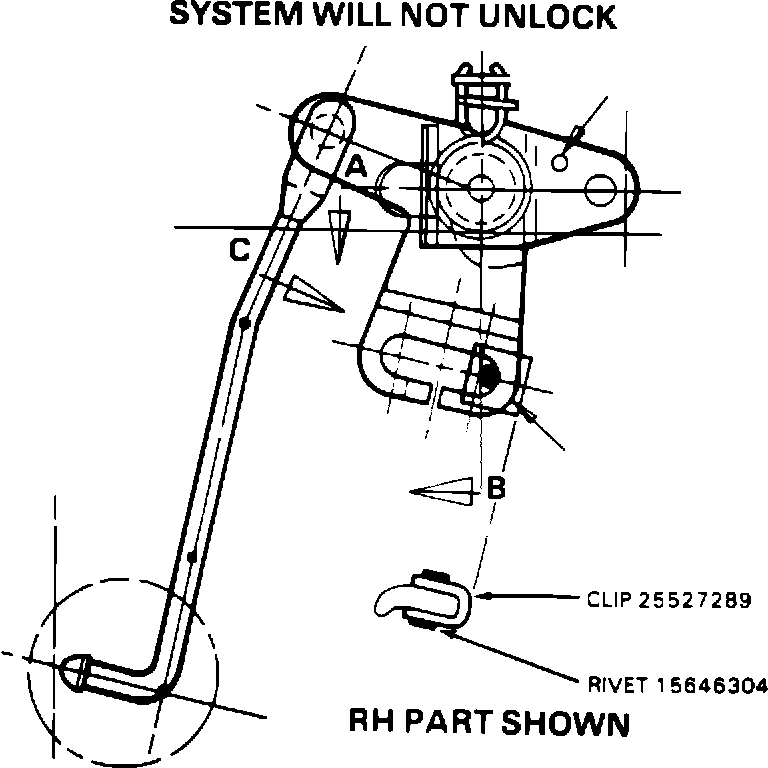

Figure 4:
If system will not unlock, install Clip Part Number 25527289 and Rivet Part Number 15646304 to rear of slot opening in bellcrank. (See Figure 4)
REPAIR:
Install Clip Part Number 25527289 and Rivet Part Number 15646304 as illustrated in Figure 3 (system will not lock) or Figure 4 (system will not unlock).
WARRANTY INFORMATION:
Labor Operation Number: T5195
Labor Time: 0.6 Hour
Trouble Code: 92
