Oldsmobile
>>
1989
>>
Delta 88 V6-3800 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse 9
Fuse 9

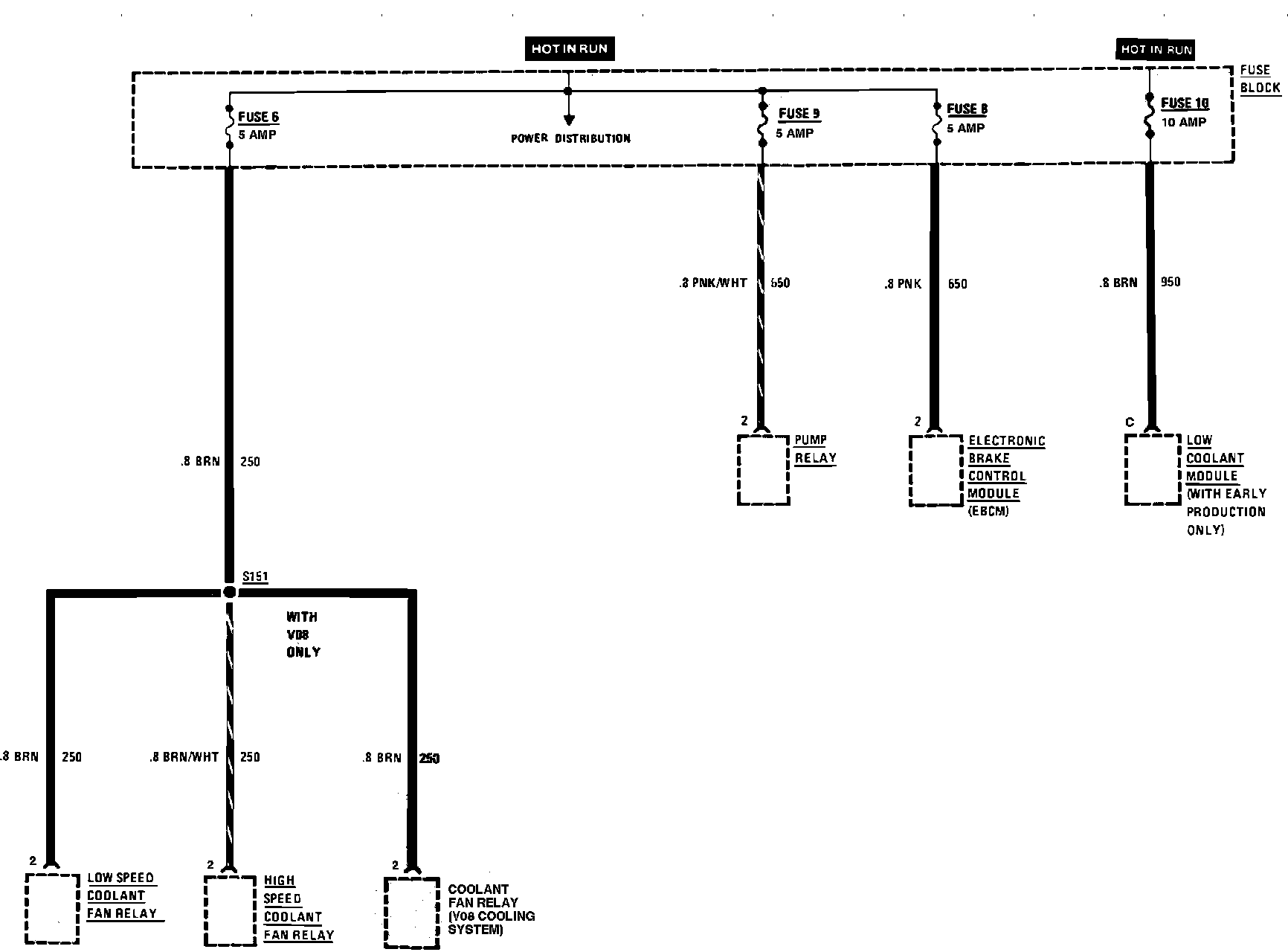

Fuse Block Details (Fuses 6, 8, 9 & 10):
