Home >> Oldsmobile >> 1989 >> Delta 88 V6-3800 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Air Delivery and Temperature Controls >> Part 2 of 3

Part 2 of 3

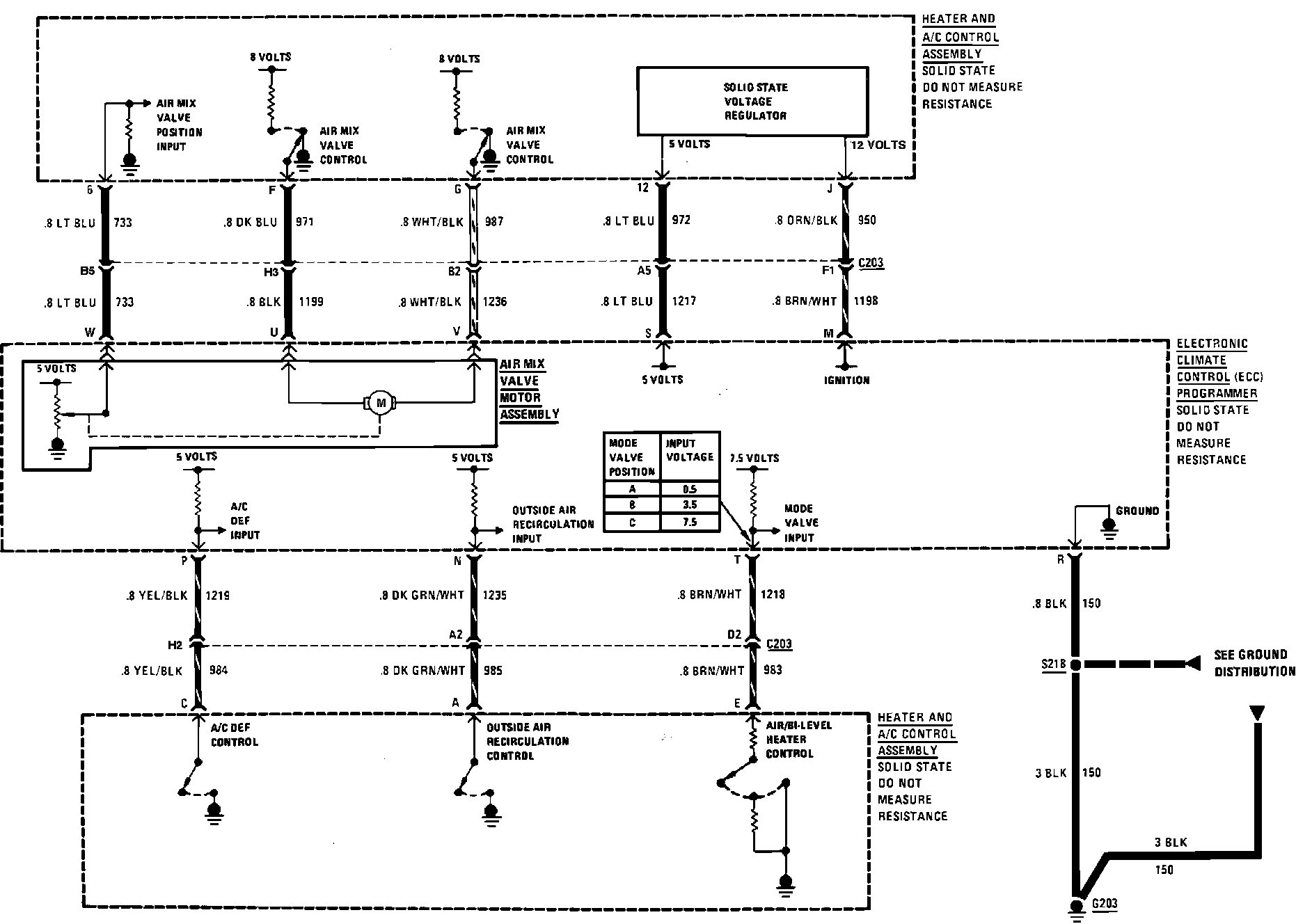

A/C Air Delivery, Electronic Temperature Control:
