Oldsmobile
>>
1989
>>
Delta 88 V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Temperature Gauge
Temperature Gauge

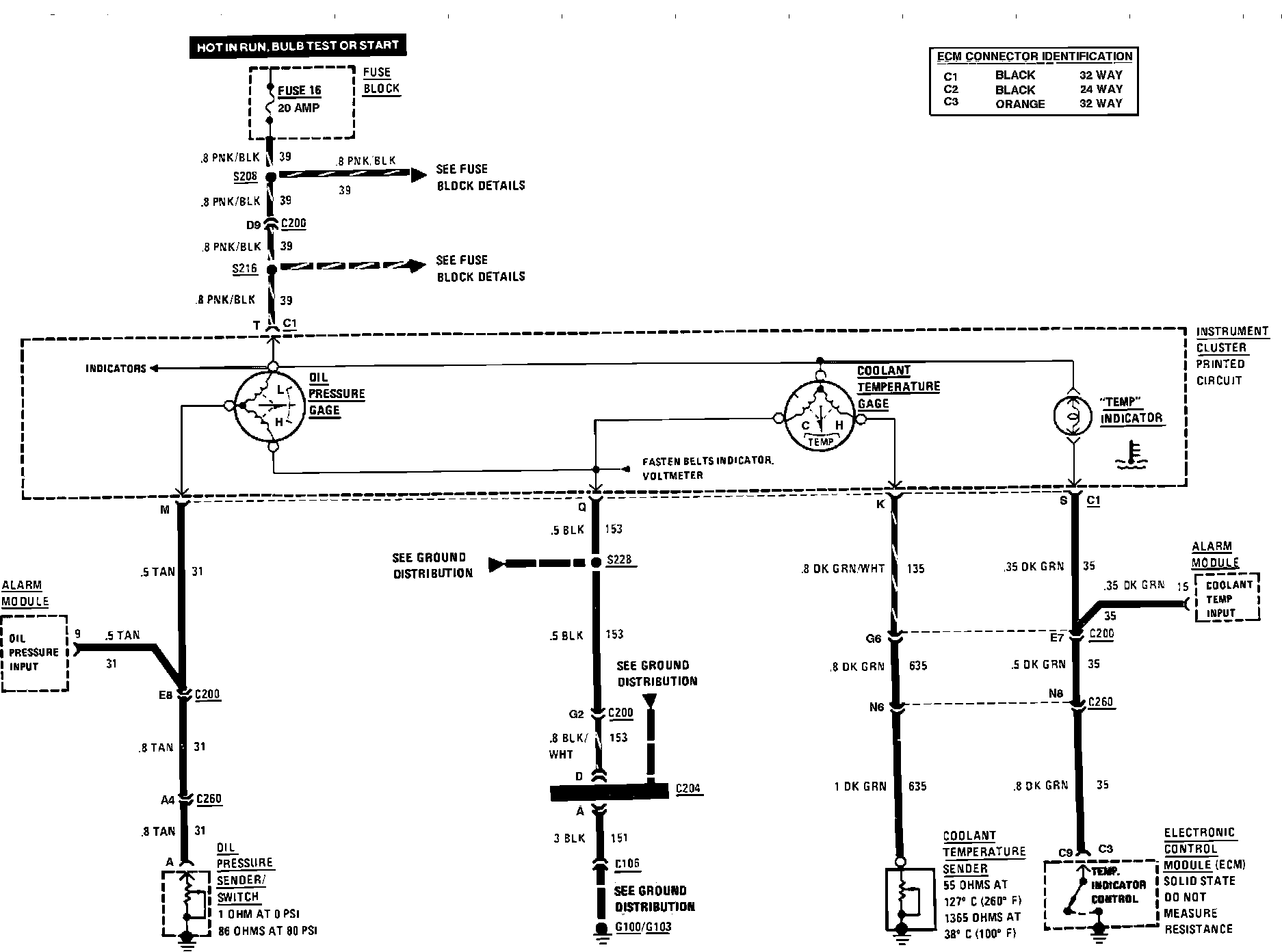

I/P Gauges Cluster (Coolant Temperature Gauge & Indicator, Oil Pressure Gauge) Ex. Touring Sedan:
