Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

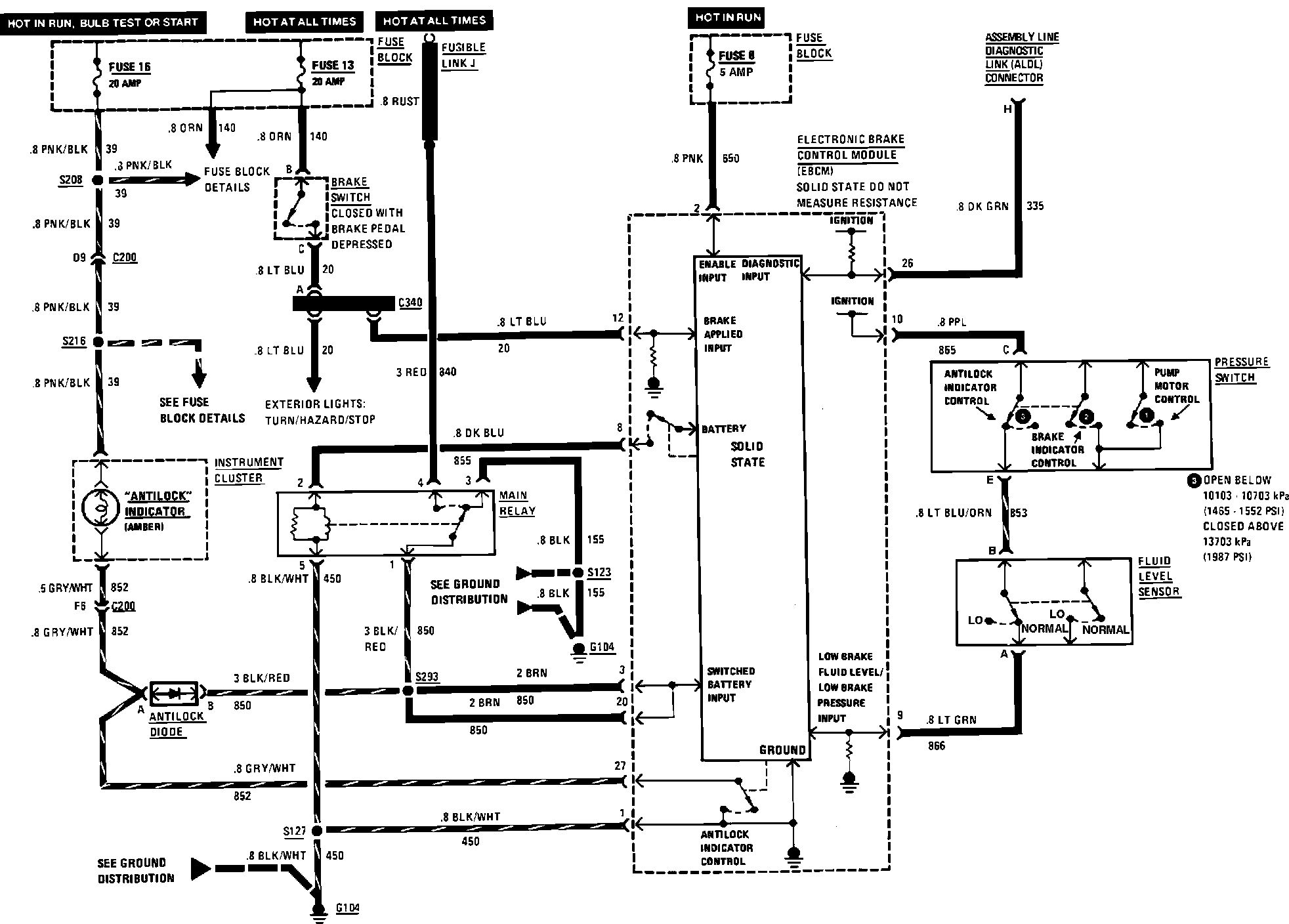

Anti-Lock Brake System (Anti-Lock Indicator Control):
