Home
>>
Oldsmobile
>>
1989
>>
Delta 88 V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
ABS Light
>>
With Reminder Package
With Reminder Package

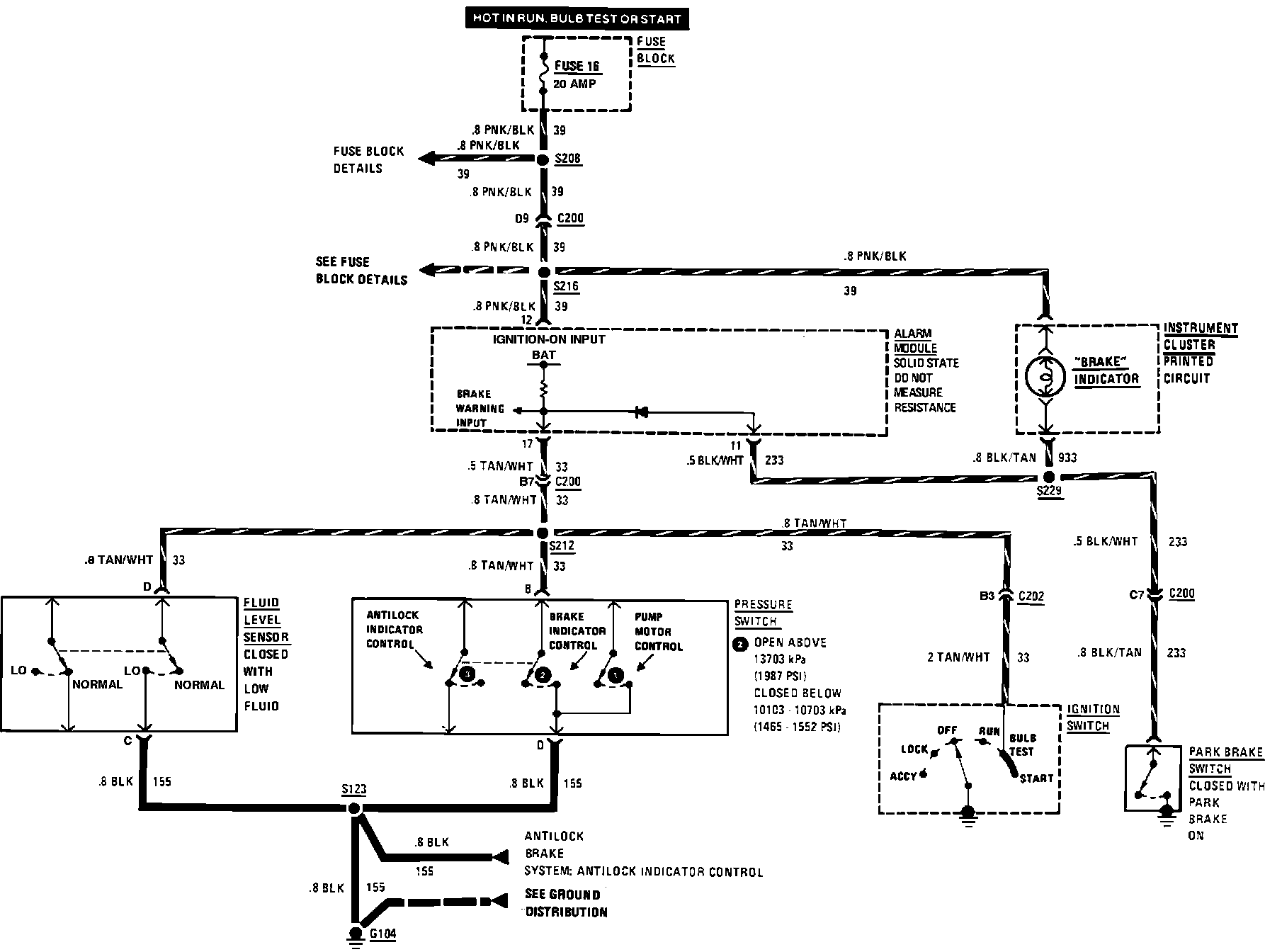

Anti-Lock Brake System (Brake Indicator Control (W/Reminder Package):
