Chart F-2, L/F WSS Output
Chart F-2, L/F WSS Output

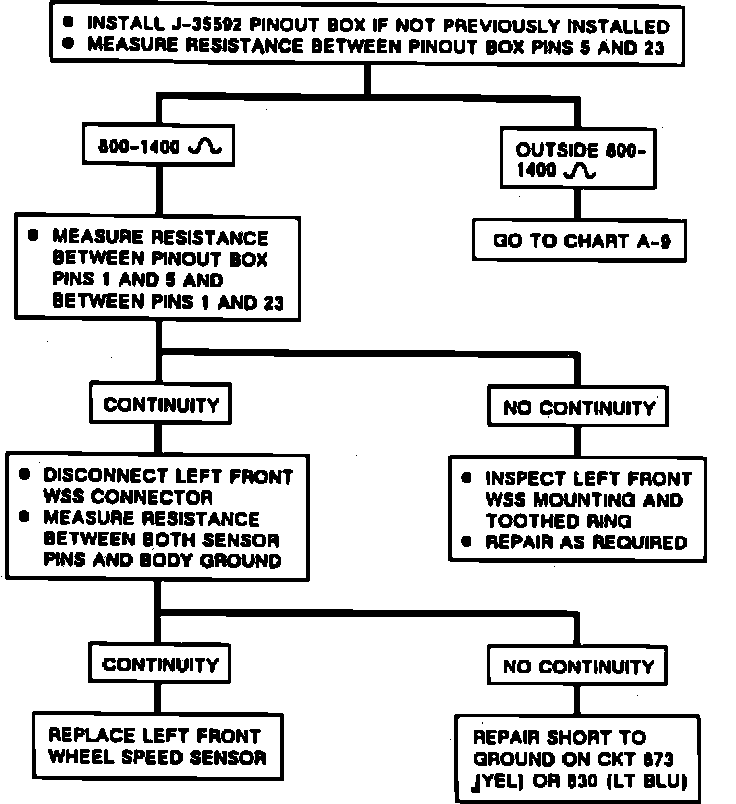

Fig. 92 Chart F-2, Left Front WSS Output. 1989-90 Models Except 6000:
