Chart F-1, R/R WSS Output
Chart F-1, R/R WSS Output

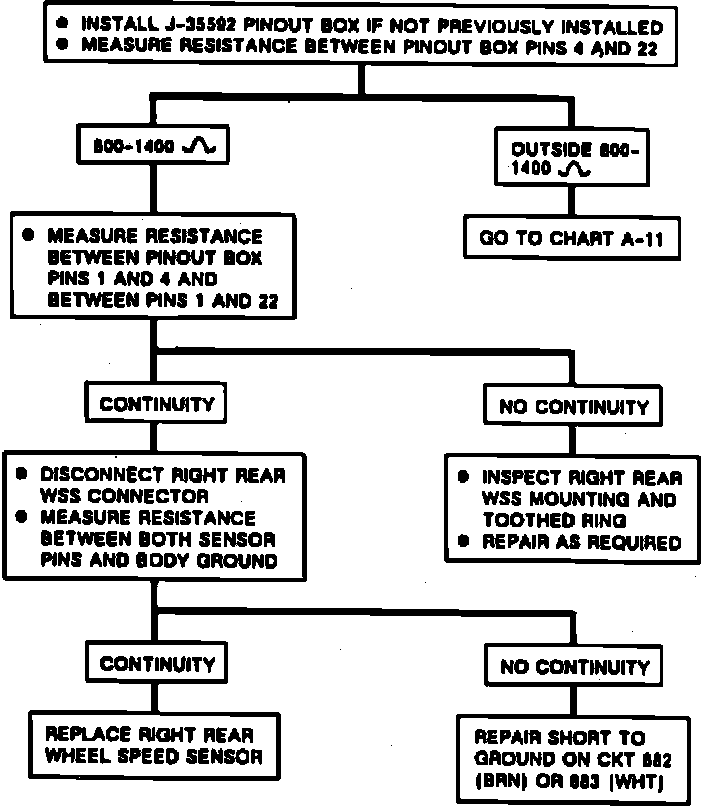

Fig. 91 Chart F-1, Right Rear WSS Output. 1989-90 Models Except 6000:
