Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1989
>>
Delta 88 V6-3800 3.8L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Charts
>>
Chart D-4, Extended Pump Operation
Chart D-4, Extended Pump Operation

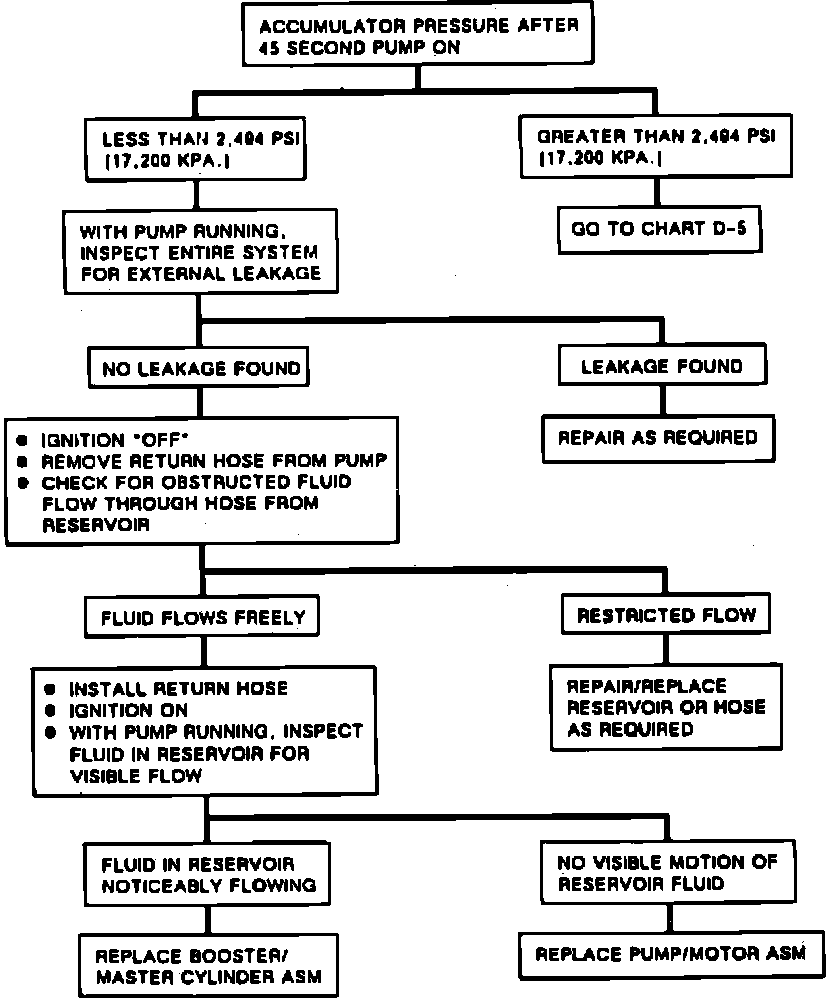

Fig. 81 Chart D-4, Extended Pump Operation. 1989-90 Models Except 6000:
