Chart A-1, Codes 11 & 12
Chart A-1, Codes 11 & 12

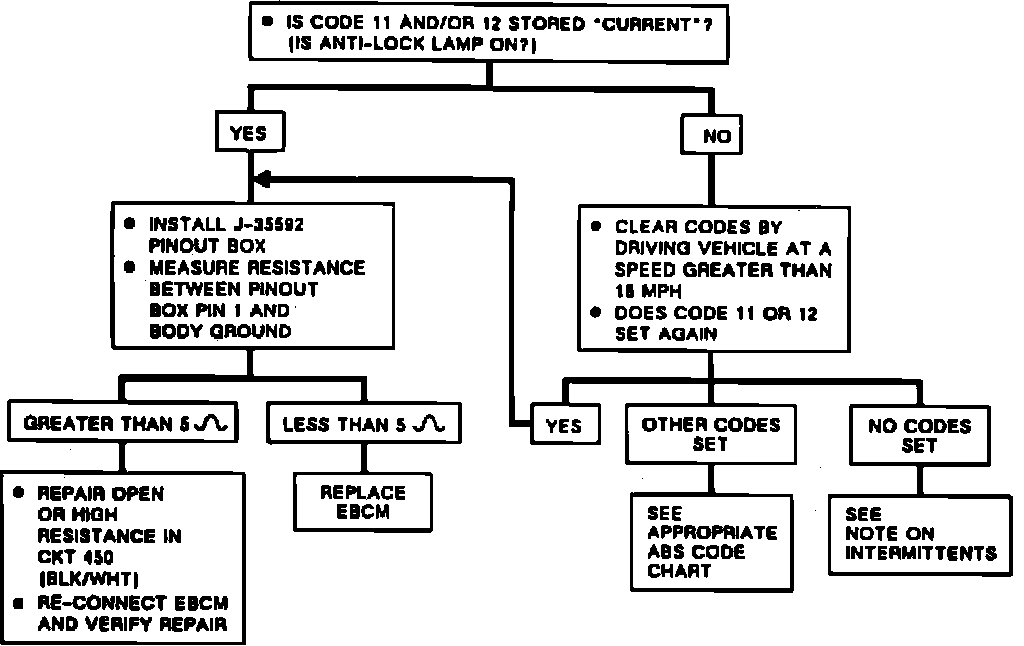

Fig. 54 Chart A-1, Codes 11 & 12. 1989-90 Models Except 6000:
