Chart D-6, Hydraulic Unit Leakdown
Chart D-6, Hydraulic Unit Leakdown

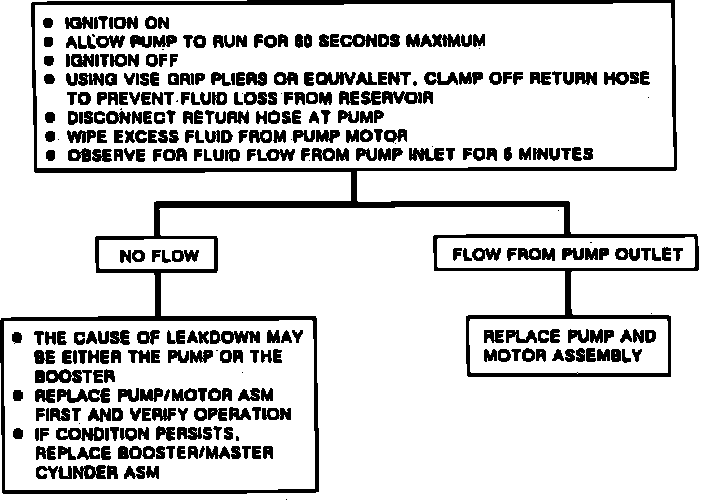

Fig. 83 Chart D-6, Hydraulic Unit Leakdown. 1989-90 Models Except 6000:
