Chart A-7, Code 26 (Rear Inlet Valve)
Chart A-7, Code 26 (Rear Inlet Valve)

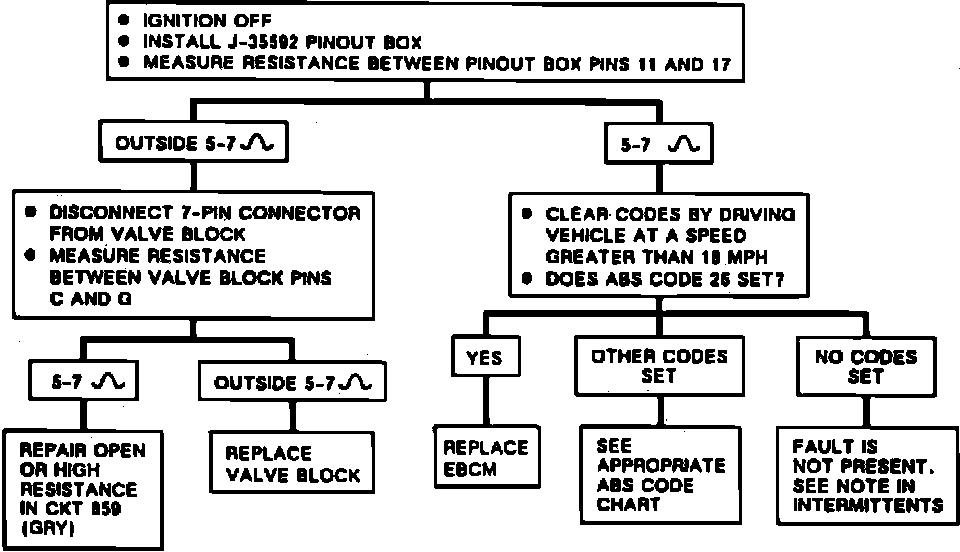

Fig. 60 Chart A-7, Code 26 (Rear Inlet Valve). 1989-90 Models Except 6000:
