Chart A-6, Code 25 (Right Front Outlet Valve)
Chart A-6, Code 25 (Right Front Outlet Valve)

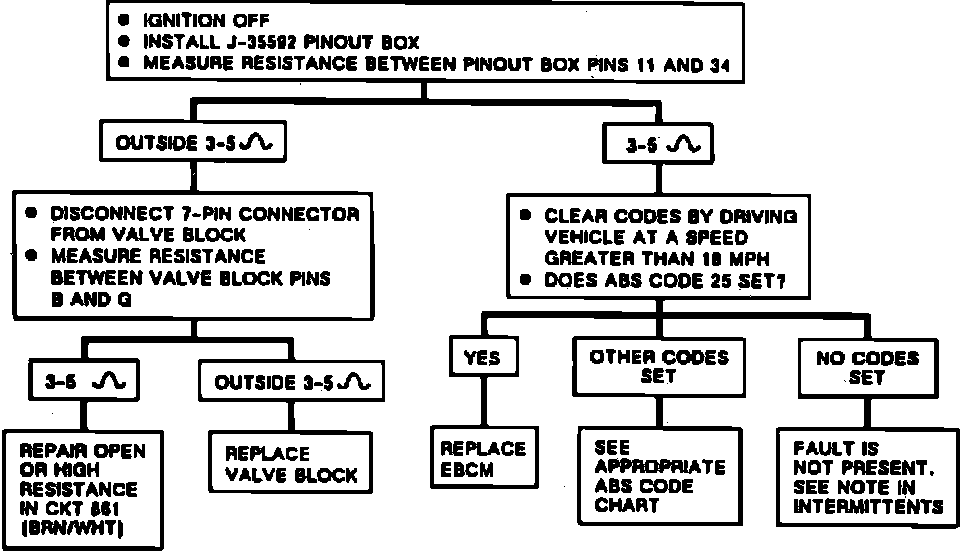

Fig. 59 Chart A-6, Code 25 (Right Front Outlet Valve). 1989-90 Models Except 6000:
