Home
>>
Oldsmobile
>>
1989
>>
Delta 88 V6-3800 3.8L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Hydraulic Assembly
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Chart A-5, Code 24 (Right Front Inlet Valve)
Chart A-5, Code 24 (Right Front Inlet Valve)

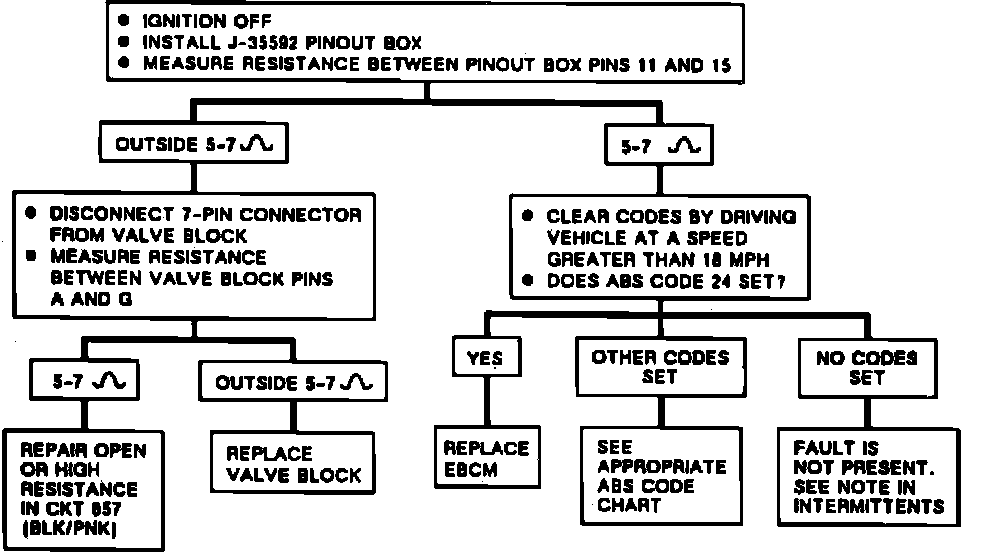

Fig. 58 Chart A-5, Code 24 (Right Front Inlet Valve). 1989-90 Models Except 6000:
