Chart A-4, Code 23 (Left Front Outlet Valve)
Chart A-4, Code 23 (Left Front Outlet Valve)

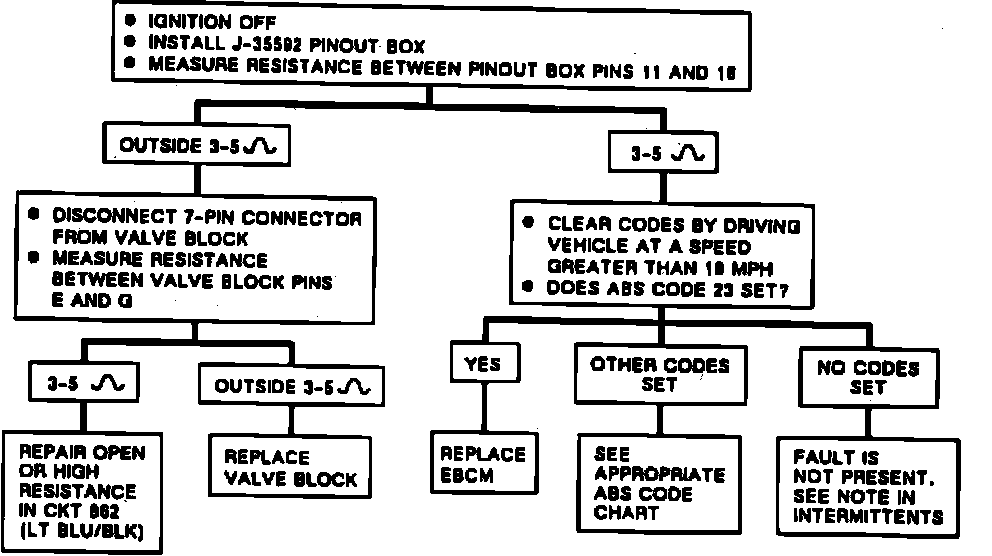

Fig. 57 Chart A-4, Code 23 (Left Front Outlet Valve). 1989-90 Models Except 6000:
