Chart A-3, Code 22 (Left Front Inlet Valve)
Chart A-3, Code 22 (Left Front Inlet Valve)

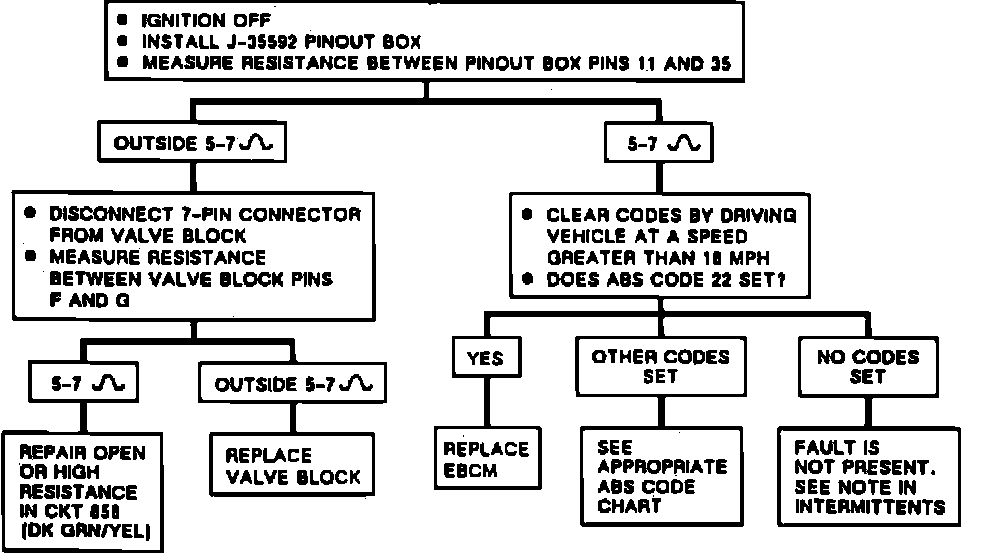

Fig. 56 Chart A-3, Code 22 (Left Front Inlet Valve). 1989-90 Models Except 6000:
