Trim Panel

TRIM PANEL

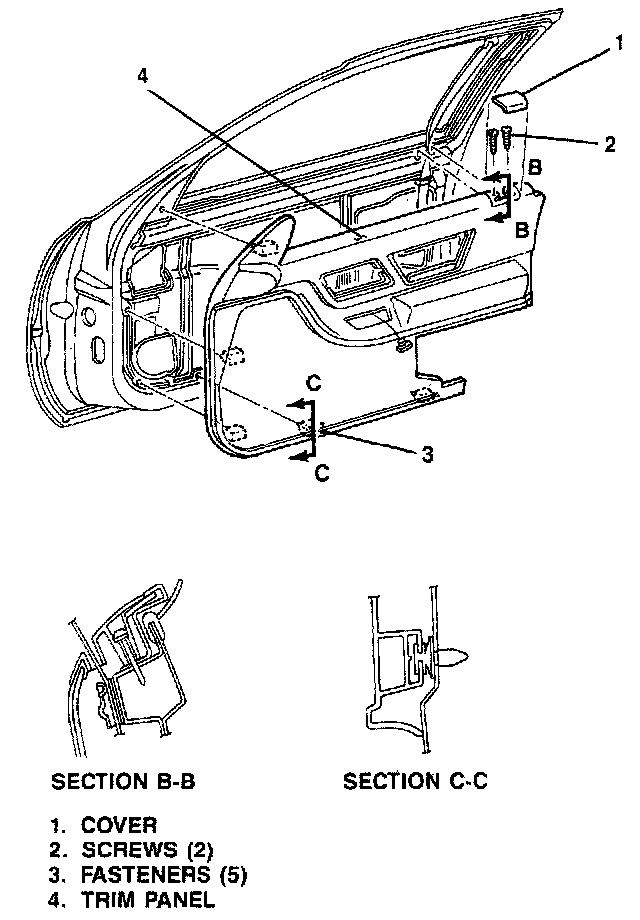

Door Trim Panel - Coupe:

TOOL REQUIRED:
^ J 24595-C Door Trim Pad and Garnish Clip Remover

REMOVE OR DISCONNECT
1. Trim cover.
2. Retractor cover.
3. Handle bezel.
4. Power window and door switch assembly, if resent.
5. Window regulator handle, if present.
6. Pull strap.
7. Pull handle.
8. Screws.
9. Door trim panel using J 24595-C to disengage fasteners from holes in door inner panel.

INSTALL OR CONNECT
1. Wire harnesses, if present, through openings in trim panel.
2. Trim panel to door.
A. Align fasteners on trim panel to holes in door inner panel.
B. Press trim panel to door until fasteners are fully engaged.
3. Screws.
4. Pull handle.
5. Pull strap.
6. Window regulator handle, if removed.
7. Power window and door switch assembly, if removed.
8. Handle bezel.
9. Retractor cover.
10. Trim cover.
