Passive Restraint Belt Retractor Cover

PASSIVE RESTRAINT BELT RETRACTOR COVER

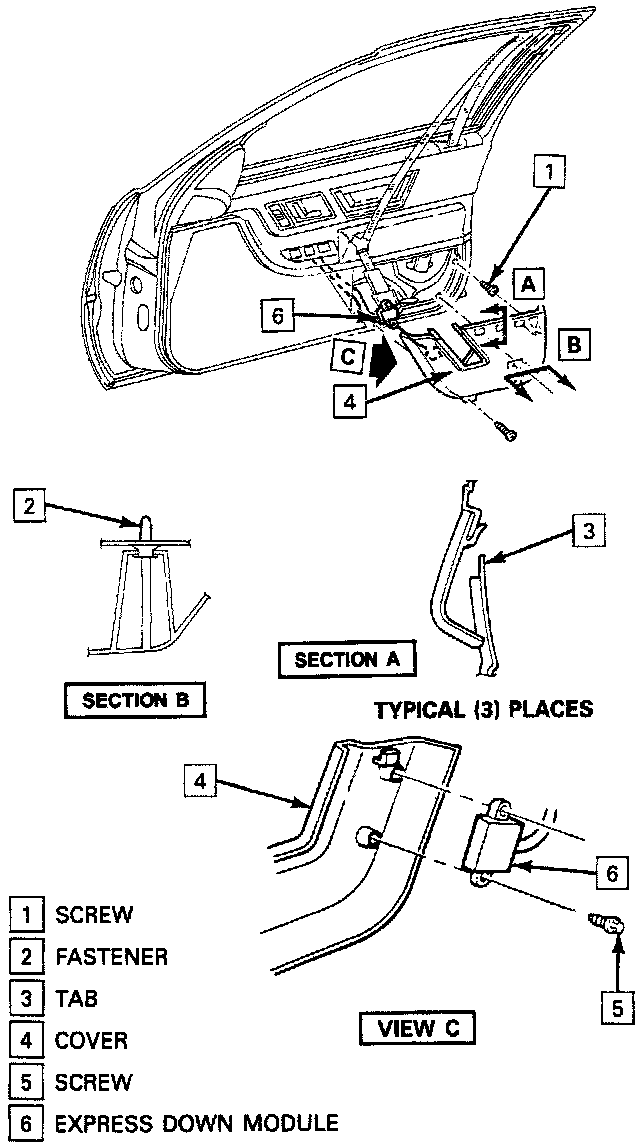

Retractor Cover Installation - Coupe:

REMOVE OR DISCONNECT
1. Screw
2. Fasteners
3. Tabs
4. Cover
5. Screws securing express down module to cover.
6. Express down module.

INSTALL OR CONNECT
1. Express down module.
2. Screws securing express down module.
3. Cover
4. Tabs
5. Fasteners
6. Screw

TIGHTEN
^ Screw to 2 N.m (18 lb in).
