Power Window and Door Switch Assembly

POWER WINDOW AND DOOR SWITCH ASSEMBLY


NOTICE: When removing a door trim panel or switch plate, the ignition switch must be in the off position. This will eliminate the possibility of shorting out the switch if a screwdriver, awl or metal object is used to remove the switch from the harness.

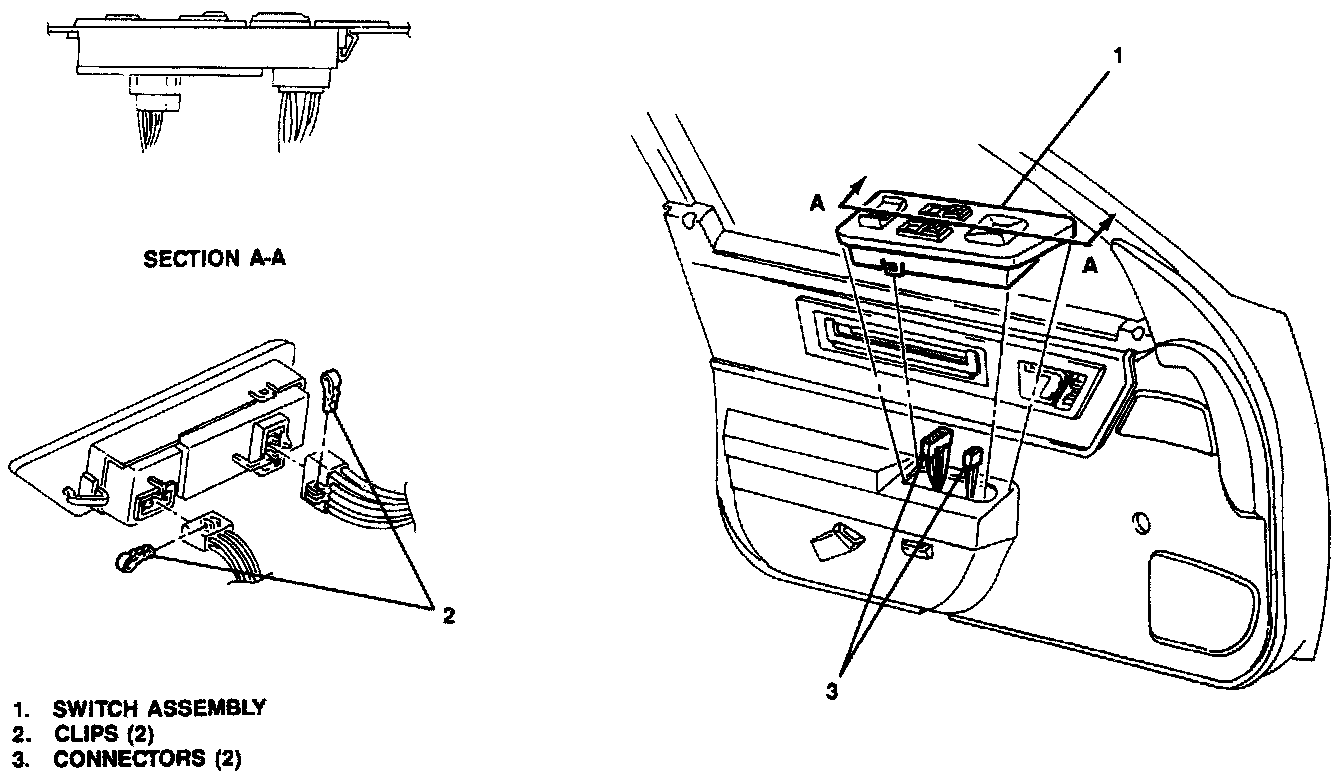

Power Switch Assembly - Coupe:

REMOVE OR DISCONNECT
1. Retractor cover.
2. Switch assembly by prying up with a flat-bladed tool.
3. Clips.
4. Connectors.

INSTALL OR CONNECT
1. Connectors.
2. Clips.
3. Switch assembly by pressing in place.
4. Retractor cover.
